SKU: SUCNFL205FG1-SNR

SNR SUCNFL205FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with25mm Bore Insert - Allow 2-3 Days

SNR SUCNFL205FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with25mm Bore Insert - Allow 2-3 Days
Regular price €155,32 ex VAT
Regular price Sale price €155,32 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,58
4+ €126,26
9+ €123,61
19+ €119,62
49+ €116,96
99+ €110,32
499+ €93,04
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

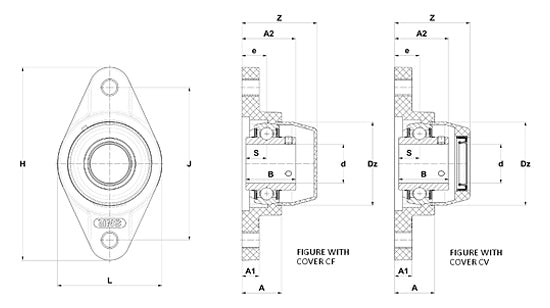

Bore 25mm
A - Housing height 29.1mm
A1 - Housing foot height / flange height 13.5mm
A2 - Total height from mounting surface 36.8mm
B - Width of Inner Ring 34.1mm
d - Shaft diameter 25mm
e - Distance mounting surface to bearing centre 17mm
H - Housing length, width or diameter 130mm
J - Mounting holes distance 99mm
L - Housing width / diameter 70mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 14.3mm
C - Dynamic load rating 14 kN
C0 - Static load rating 7.8 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.3kg
Recommended tightening torque for set screw 3.9 Nm
