SKU: SUCFPL208FG1-SNR

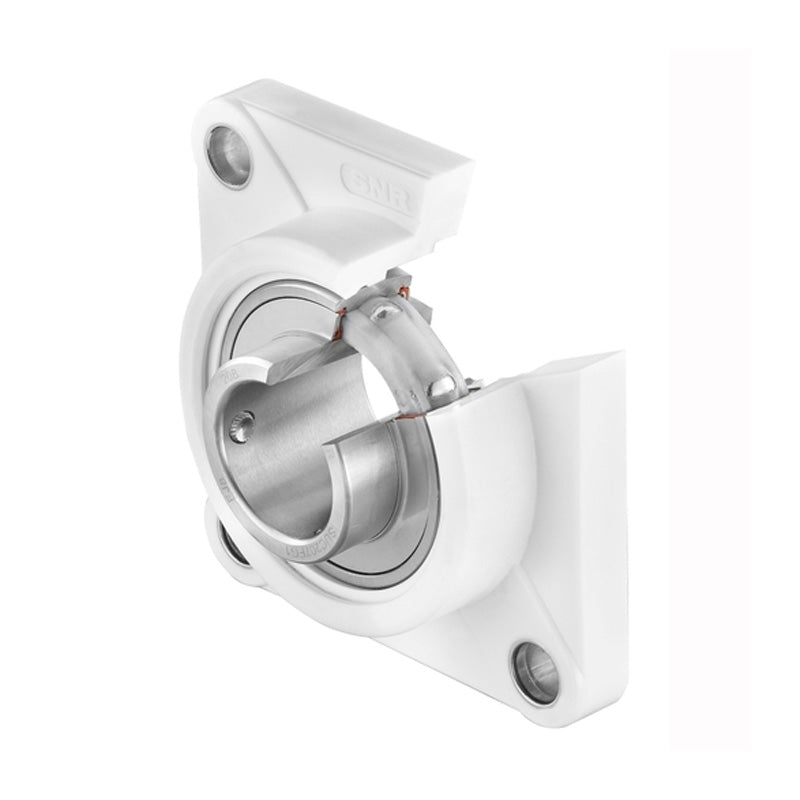

SNR SUCFPL208FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with40mm Bore Insert - Allow 2-3 Days

SNR SUCFPL208FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with40mm Bore Insert - Allow 2-3 Days
Regular price €233,06 ex VAT
Regular price Sale price €233,06 ex VAT
Sale Sold out

In stock

Price Break
3+ €197,45
4+ €189,47
9+ €185,48
19+ €179,50
49+ €175,51
99+ €165,54
499+ €139,61
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

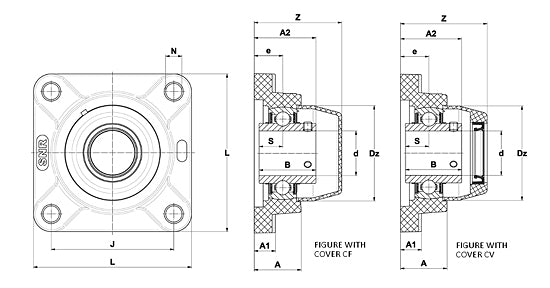

Technical
Bore 40mm
A - Housing height 37.5mm
A1 - Housing foot height / flange height 17mm
A2 - Total height from mounting surface 53.2mm
B - Width of Inner Ring 49.2mm
d - Shaft diameter 40mm
e - Distance mounting surface to bearing centre 23mm
J - Mounting holes distance 102mm
L - Housing width / diameter 130mm
N - Mounting hole dimension 14mm
S - Distance front side/bearing centre 19mm
C - Dynamic load rating 32 kN
C0 - Static load rating 19.3 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.91kg
Recommended tightening torque for set screw 8.3 Nm
