SKU: SUCFBL206FG1-SNR

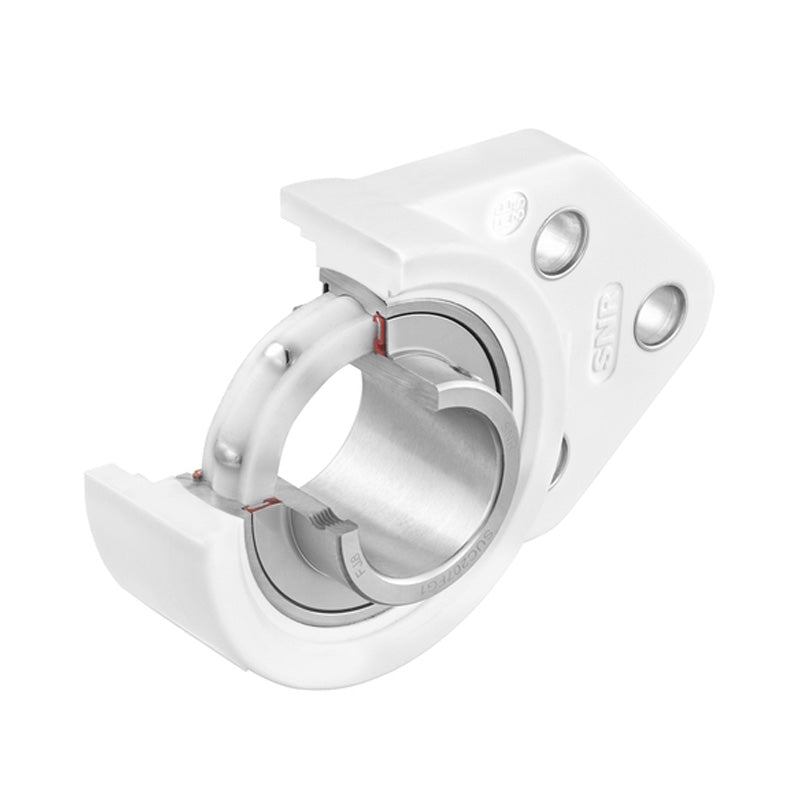

SNR SUCFBL206FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days

SNR SUCFBL206FG1 Metric Sentinel Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price €181,18 ex VAT
Regular price Sale price €181,18 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,49
4+ €147,29
9+ €144,19
19+ €139,54
49+ €136,44
99+ €128,68
499+ €108,53
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
A - Housing height 32mm
A1 - Housing foot height / flange height 13.3mm
A2 - Total height from mounting surface 41.5mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 30mm
e - Distance mounting surface to bearing centre 19.3mm
H - Housing length, width or diameter 138.5mm
H1 - Distance housing side to centre of bearing insert 96.5mm
J - Mounting holes distance 47.6mm
J3 - Distance mounting hole to bearing centre 52.4mm
J4 - Mounting hole distance 31.8mm
L - Housing width / diameter 83mm
L2 - Housing flange width 76mm
N - Mounting hole dimension 10.7mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 19.4 kN
C0 - Static load rating 11.2 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.47kg
Recommended tightening torque for set screw 3.9 Nm
