SKU: ST60-RHP

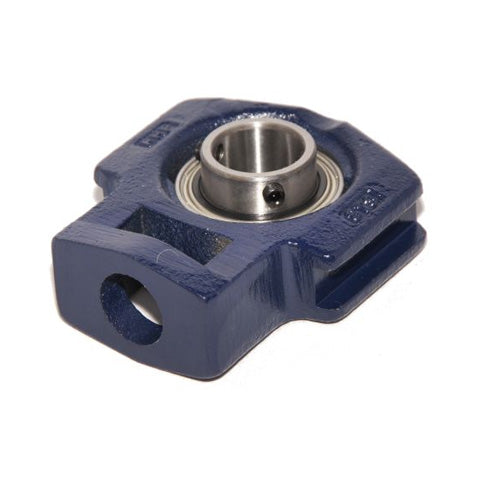

RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert
RHP ST60 Cast Iron Take Up Unit and 60mm Bore Insert
Regular price
€177,00
ex VAT
Regular price
Sale price
€177,00
ex VAT
In stock
Price Break
10+
€134,80
20+
€127,22
30+
€125,71
40+
€124,19
50+
€122,68
75+
€121,16
100+
€113,59
200+
€112,08
250+
€110,56
500+
€109,05
1000+
€106,02
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- ST
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 192mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
