SKU: ST50EC-RHP

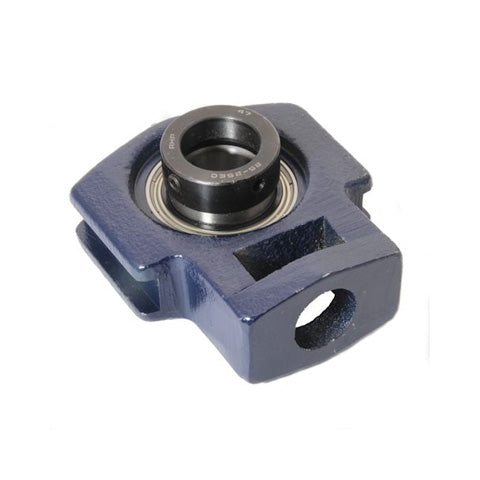

RHP ST50EC Cast Iron Take Up Unit and 50mm Bore Insert

RHP ST50EC Cast Iron Take Up Unit and 50mm Bore Insert
Regular price €113,49 ex VAT
Regular price Sale price €113,49 ex VAT
Sale Sold out

In stock

Price Break
10+ €86,44
20+ €81,58
30+ €80,61
40+ €79,64
50+ €78,67
75+ €77,70
100+ €72,84
200+ €71,87
250+ €70,90
500+ €69,93
1000+ €67,99
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 50mm
L 151mm
L1 90.5mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B2 43.64mm
s1 11.05mm
d2 69.85mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
