SKU: ST45DEC-RHP

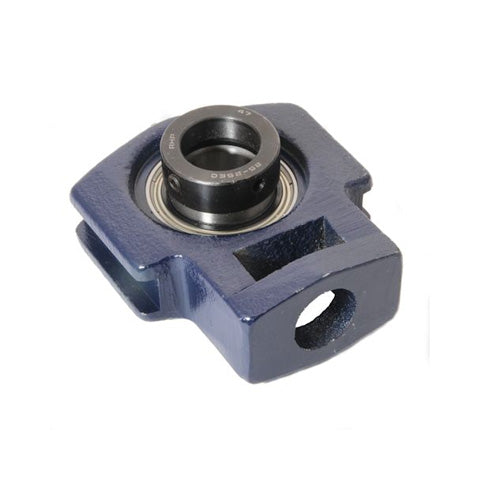

RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert

RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert
Regular price €114,23 ex VAT
Regular price Sale price €114,23 ex VAT
Sale Sold out

In stock

Price Break
10+ €87,00
20+ €82,11
30+ €81,14
40+ €80,16
50+ €79,18
75+ €78,20
100+ €73,32
200+ €72,34
250+ €71,36
500+ €70,38
1000+ €68,43
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 45mm
L 147mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
