SKU: ST45-RHP

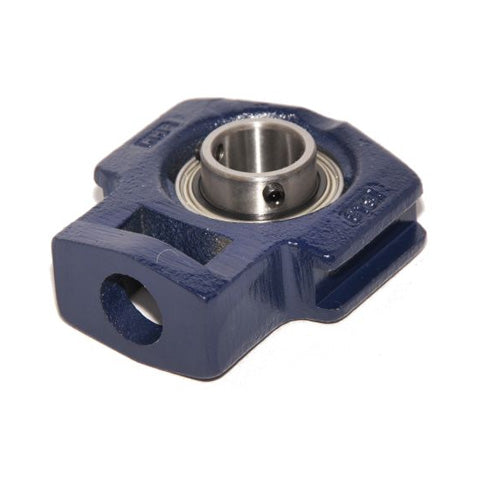

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
Regular price €94,62 ex VAT
Regular price Sale price €94,62 ex VAT
Sale Sold out

In stock

Price Break
10+ €72,07
20+ €68,02
30+ €67,21
40+ €66,40
50+ €65,59
75+ €64,78
100+ €60,73
200+ €59,92
250+ €59,11
500+ €58,30
1000+ €56,68
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 45mm
L 147mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B 49.23mm
s 19.1mm
d1 57.3mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
