SKU: ST35-RHP

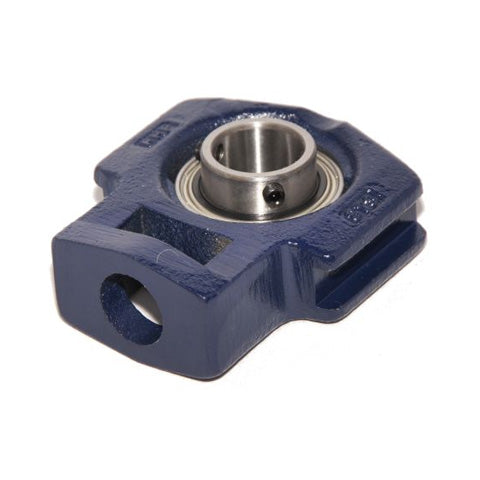

RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert
RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert
Regular price
€71,86
ex VAT
Regular price
Sale price
€71,86
ex VAT
In stock
Price Break
10+
€54,73
20+
€51,65
30+
€51,04
40+
€50,42
50+
€49,81
75+
€49,19
100+
€46,12
200+
€45,50
250+
€44,89
500+
€44,27
1000+
€43,04
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- ST
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
