SKU: ST2R-RHP

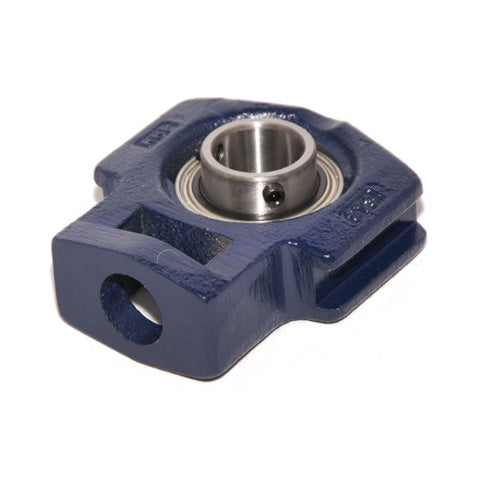

RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert
RHP ST2R Cast Iron Take Up Unit and 2 inch Bore Insert
Regular price
€110,53
ex VAT
Regular price
Sale price
€110,53
ex VAT
In stock
Price Break
10+
€84,18
20+
€79,45
30+
€78,50
40+
€77,56
50+
€76,61
75+
€75,67
100+
€70,94
200+
€69,99
250+
€69,05
500+
€68,10
1000+
€66,21
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- ST
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5.945 inch |
| L1 | 3.563 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
