SKU: ST25-RHP

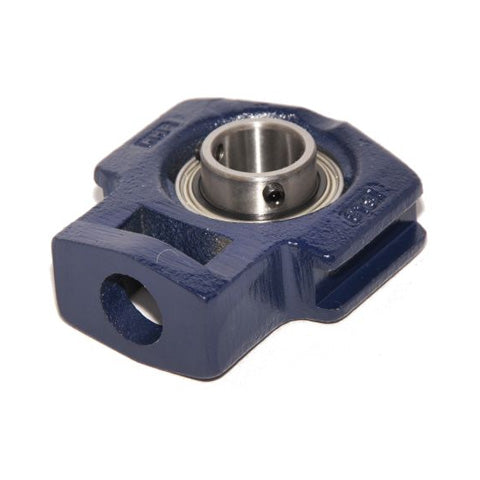

RHP ST25 Cast Iron Take Up Unit and 25mm Bore Insert
RHP ST25 Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
€52,73
ex VAT
Regular price
Sale price
€52,73
ex VAT
In stock
Price Break
10+
€40,16
20+
€37,90
30+
€37,45
40+
€37,00
50+
€36,55
75+
€36,09
100+
€33,84
200+
€33,39
250+
€32,94
500+
€32,49
1000+
€31,58
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- ST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 98mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
