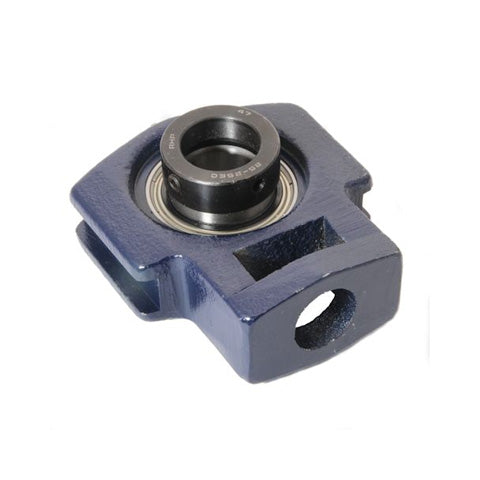

RHP ST20EC Cast Iron Take Up Unit and 20mm Bore Insert
RHP ST20EC Cast Iron Take Up Unit and 20mm Bore Insert
Regular price
€47,30
ex VAT
Regular price
Sale price
€47,30
ex VAT
In stock
Price Break
10+
€36,02
20+
€34,00
30+
€33,60
40+
€33,19
50+
€32,79
75+
€32,38
100+
€30,36
200+
€29,95
250+
€29,55
500+
€29,14
1000+
€28,33
Share this product
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- ST
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 95.5mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
