SKU: ST20DEC-RHP

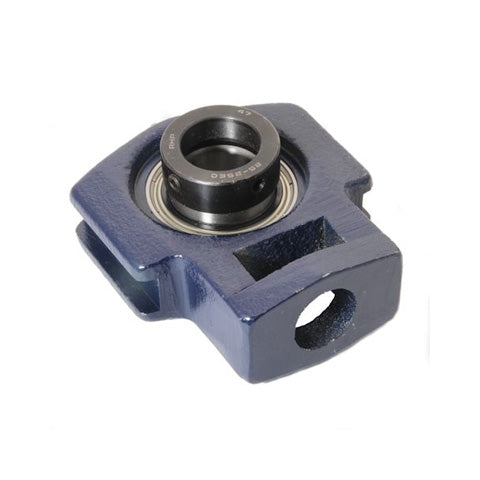

RHP ST20DEC Cast Iron Take Up Unit and 20mm Bore Insert

RHP ST20DEC Cast Iron Take Up Unit and 20mm Bore Insert
Regular price €52,63 ex VAT
Regular price Sale price €52,63 ex VAT
Sale Sold out

In stock

Price Break
10+ €40,09
20+ €37,83
30+ €37,38
40+ €36,93
50+ €36,48
75+ €36,03
100+ €33,78
200+ €33,33
250+ €32,88
500+ €32,43
1000+ €31,53
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 20mm
L 95.5mm
L1 62mm
L2 11.5mm
L3 16mm
L4 50.5mm
L5 36.5mm
H 88.5mm
H1 58.5mm
H2 32mm
H3 76mm
N 22.5mm
A 36mm
A1 27.5mm
A2 13.5mm
B3 43.62mm
s2 17.12mm
d2 33.3mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
