SKU: ST1-RHP

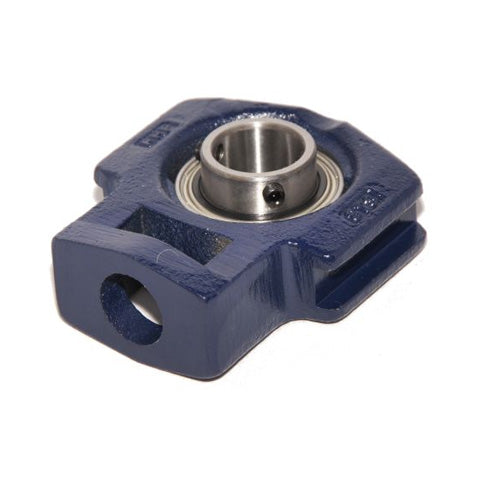

RHP ST1 Cast Iron Take Up Unit and 1 inch Bore Insert

RHP ST1 Cast Iron Take Up Unit and 1 inch Bore Insert
Regular price €55,92 ex VAT
Regular price Sale price €55,92 ex VAT
Sale Sold out

In stock

Price Break
10+ €42,58
20+ €40,19
30+ €39,71
40+ €39,24
50+ €38,76
75+ €38,28
100+ €35,89
200+ €35,41
250+ €34,93
500+ €34,45
1000+ €33,49
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
L 3.858 inch
L1 2.441 inch
L2 0.453 inch
L3 0.63 inch
L4 1.988 inch
L5 1.437 inch
H 3.484 inch
H1 2.303 inch
H2 1.26 inch
H3 2.992 inch
N 0.886 inch
A 1.417 inch
A1 1.083 inch
A2 0.531 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 1 kg
Insert <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
