SKU: ST1.5/8-RHP

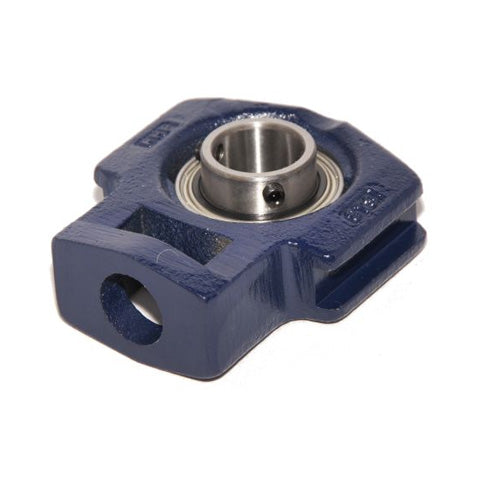

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert

RHP ST1-5/8 Cast Iron Take Up Unit and 1-5/8 inch Bore Insert
Regular price €100,39 ex VAT
Regular price Sale price €100,39 ex VAT
Sale Sold out

In stock

Price Break
10+ €76,46
20+ €72,16
30+ €71,30
40+ €70,44
50+ €69,59
75+ €68,73
100+ €64,43
200+ €63,57
250+ €62,71
500+ €61,85
1000+ €60,14
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-5/8 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
