SKU: ST1.3/4-RHP

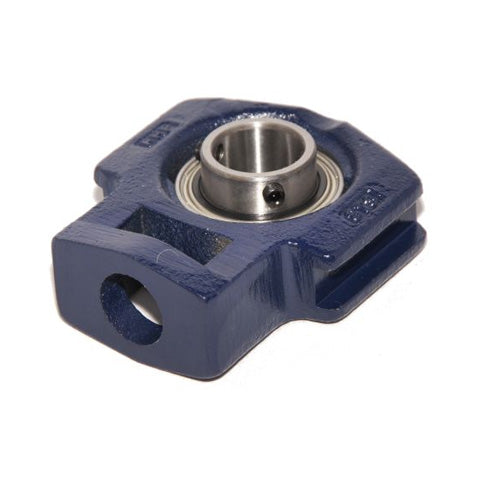

RHP ST1-3/4 Cast Iron Take Up Unit and 1-3/4 inch Bore Insert

RHP ST1-3/4 Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
Regular price €36,93 ex VAT
Regular price Sale price €36,93 ex VAT
Sale Sold out

In stock

Price Break
10+ €28,12
20+ €26,54
30+ €26,23
40+ €25,91
50+ €25,60
75+ €25,28
100+ €23,70
200+ €23,38
250+ €23,07
500+ €22,75
1000+ €22,12
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
