SKU: ST1.1/4DEC-RHP

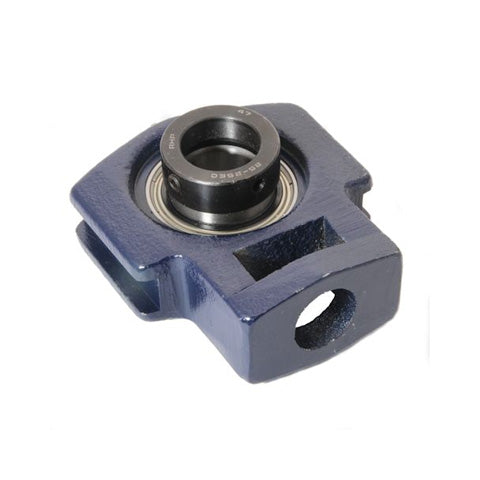

RHP ST1-1/4DEC Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4DEC Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
Regular price €88,25 ex VAT
Regular price Sale price €88,25 ex VAT
Sale Sold out

In stock

Price Break
10+ €67,21
20+ €63,44
30+ €62,68
40+ €61,93
50+ €61,17
75+ €60,42
100+ €56,64
200+ €55,89
250+ €55,13
500+ €54,38
1000+ €52,86
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4DECG+insonly">1035-1-1/4DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
