SKU: ST1.1/4-RHP

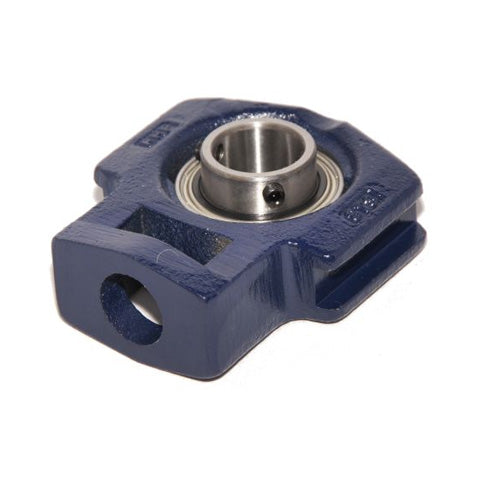

RHP ST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
Regular price €76,22 ex VAT
Regular price Sale price €76,22 ex VAT
Sale Sold out

In stock

Price Break
10+ €58,04
20+ €54,78
30+ €54,13
40+ €53,48
50+ €52,83
75+ €52,18
100+ €48,91
200+ €48,26
250+ €47,61
500+ €46,96
1000+ €45,65
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
