SKU: SSUCT.206
SSUCT206 Metric Stainless Steel Take Up Unit Housing with 30mm Bore Stainless Insert
SSUCT206 Metric Stainless Steel Take Up Unit Housing with 30mm Bore Stainless Insert
Regular price
€49,92
ex VAT
Regular price
Sale price
€49,92
ex VAT
Equivalent to: ST30
In stock
Price Break
3+
€38,02
4+
€35,88
9+
€35,46
19+
€35,03
49+
€34,60
99+
€34,18
499+
€32,04
999+
€31,61
1999+
€31,19
2999+
€30,76
4999+
€29,90
Description
Description
|

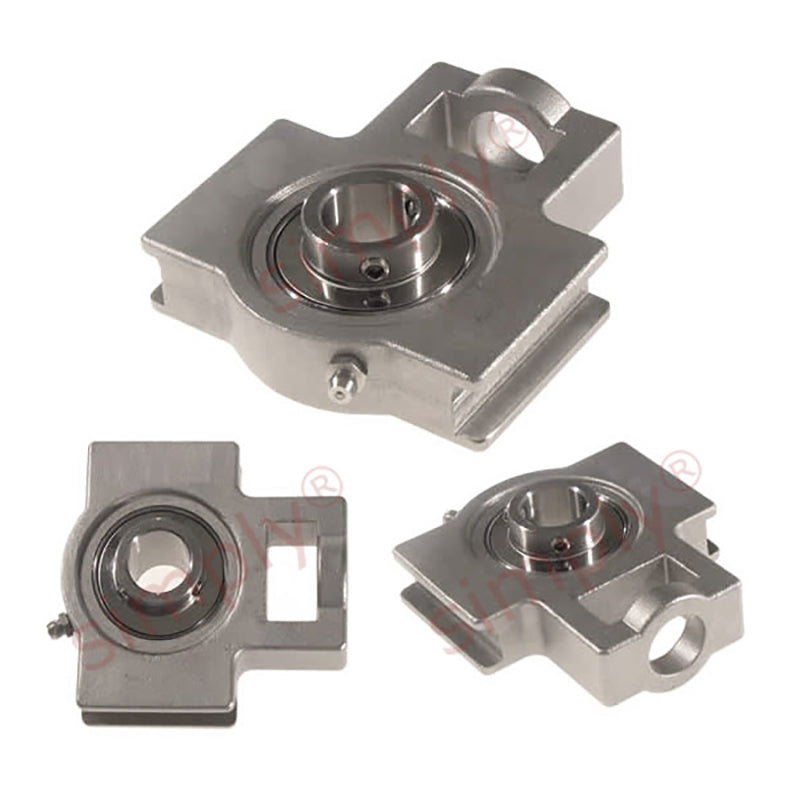

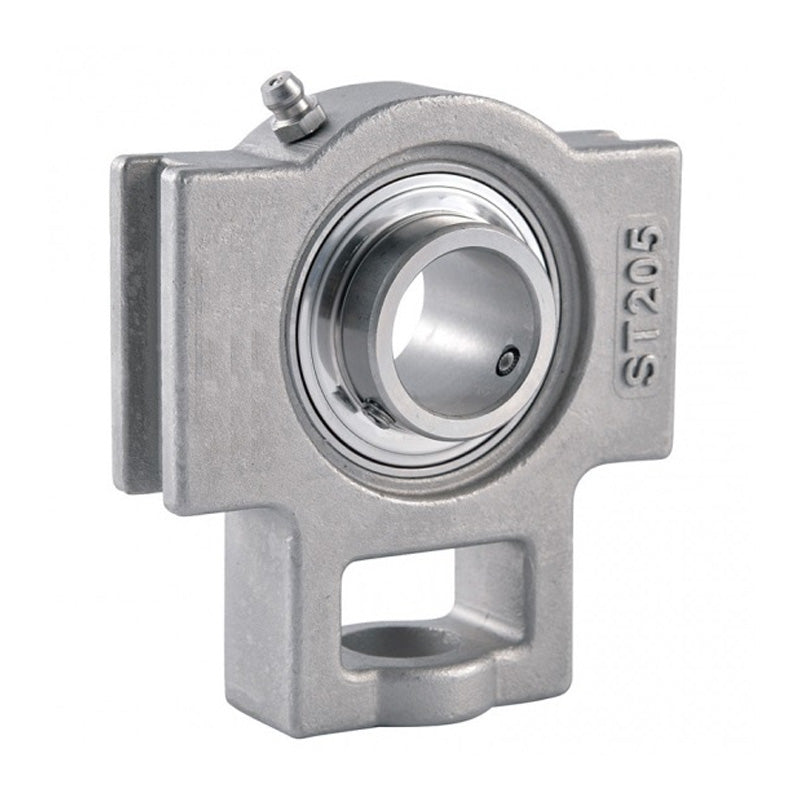

SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: ST30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- SSUCT
Technical
Technical
| d | 30mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 56mm |
| q | 37mm |
| s | 22mm |
| b | 57mm |
| K | 12mm |
| e | 89mm |
| a | 102mm |
| w | 113mm |
| j | 37mm |
| l | 28mm |
| h | 70mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Weight | 1.3 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
