SKU: SSUCP.206-18

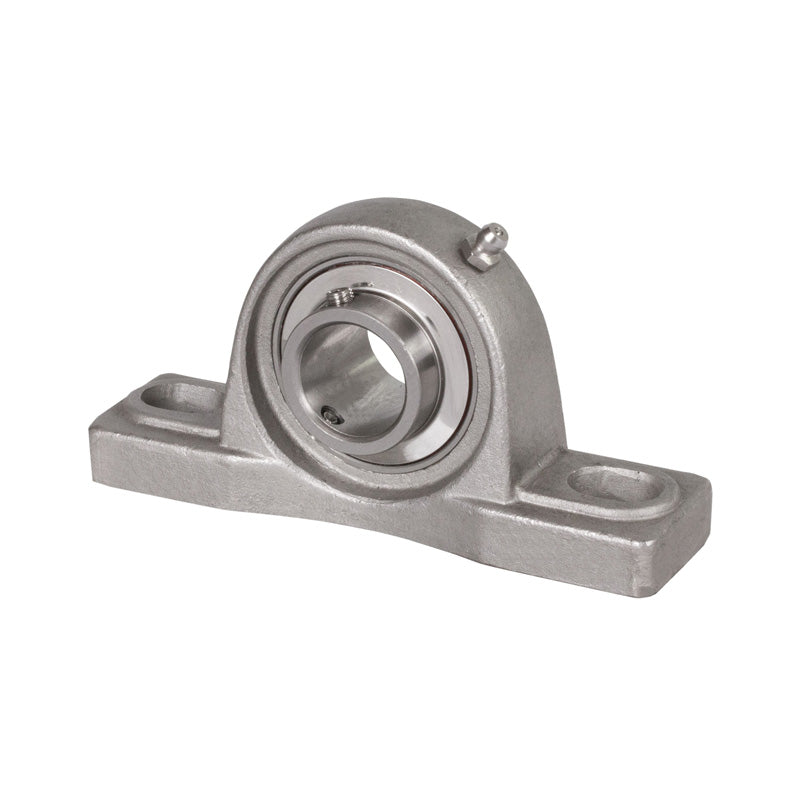

SSUCP206-18 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Stainless Insert
SSUCP206-18 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Stainless Insert
Regular price
€47,74
ex VAT
Regular price
Sale price
€47,74
ex VAT
Equivalent to: NP1.1/8
In stock
Price Break
3+
€36,36
4+
€34,31
9+
€33,91
19+
€33,50
49+
€33,09
99+
€32,68
499+
€30,64
999+
€30,23
1999+
€29,82
2999+
€29,41
4999+
€28,60
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP1.1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 42.9mm |
| a | 165mm |
| e | 121mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 18mm |
| w | 83mm |
| B1 | 38.1mm |
| n | 15.9mm |
| Bolt | 14mm |
| Weight | 0.79 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
