SKU: SSBPA.PL.205
SSBPAPL205 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSBPAPL205 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
€19,22
ex VAT
Regular price
Sale price
€19,22
ex VAT
In stock
Price Break
10+
€17,11
19+
€16,14
29+
€15,95
39+
€15,76
49+
€15,57
74+
€15,38
99+
€14,42
199+
€14,22
249+
€14,03
499+
€13,84
999+
€13,45
Couldn't load pickup availability
Description
Description

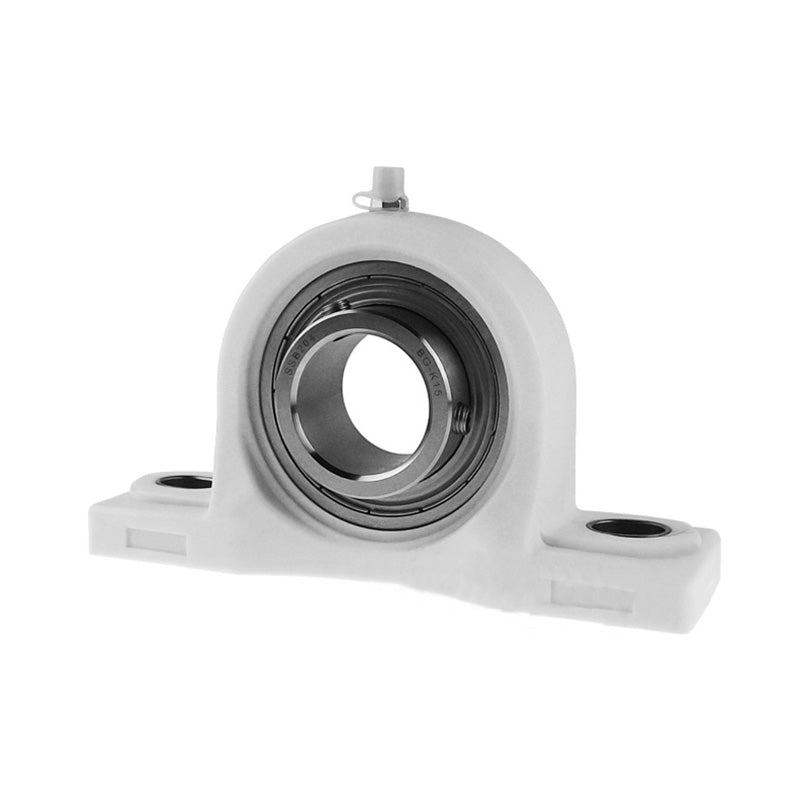

SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 51mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 76.5mm |
| e | 51mm |
| b | 39.5mm |
| g | L |
| s | i |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.15kg |
| Temperature Range | -35 to 102 deg C |
