SKU: SS.SB.204

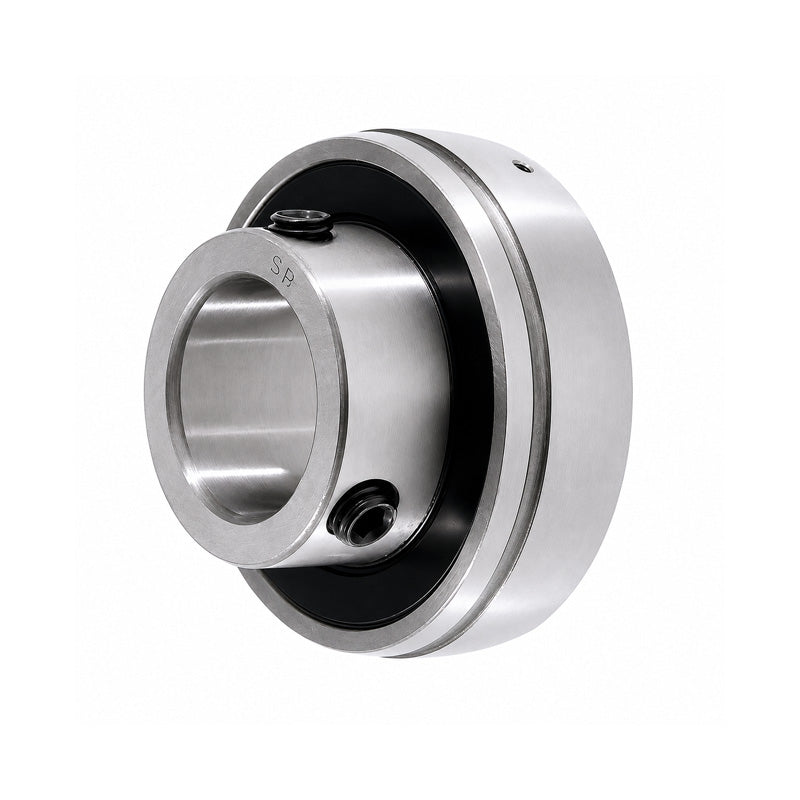

SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
€10,10
ex VAT
Regular price
Sale price
€10,10
ex VAT
In stock
Price Break
3+
€7,69
5+
€7,26
9+
€7,17
19+
€7,08
49+
€7,00
74+
€6,91
99+
€6,48
199+
€6,39
249+
€6,31
499+
€6,22
999+
€6,05
Share this product
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
Technical
Technical
| Shaft Dia | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1000 kgf |
| Static Load | 630 kgf |
| Weight | 0.15kg |
