SKU: SS.PHS25.EU

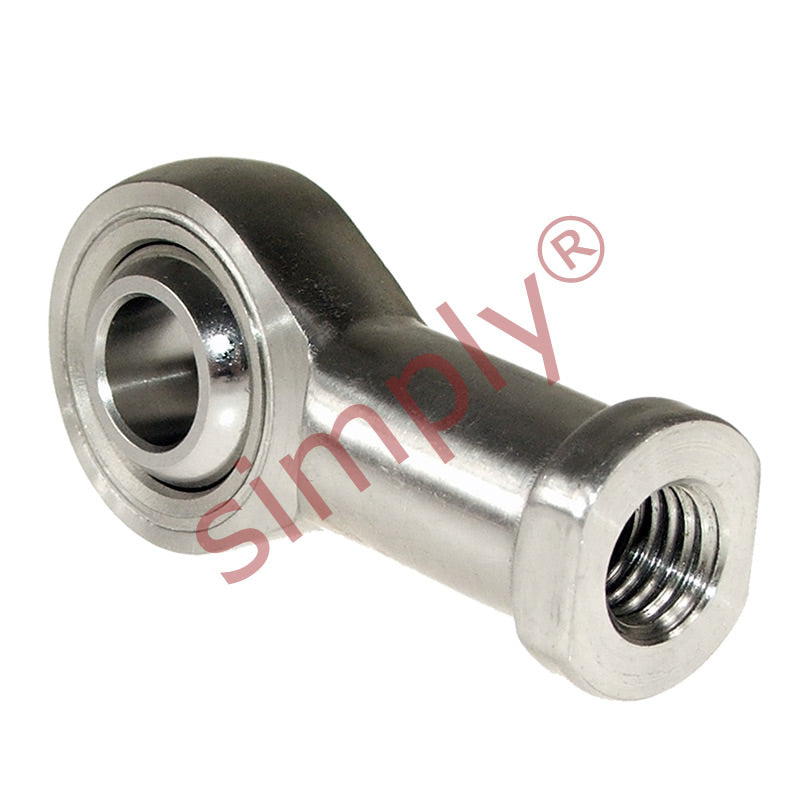

Budget SSPHS25 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread
Budget SSPHS25 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread
Regular price
€109,59
ex VAT
Regular price
Sale price
€109,59
ex VAT
In stock
Price Break
10+
€83,46
19+
€78,77
29+
€77,83
39+
€76,90
49+
€75,96
74+
€75,02
99+
€70,33
199+
€69,39
249+
€68,46
499+
€67,52
999+
€65,64
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- PTFE Lined
Technical
Technical
| d | 25mm |
|---|---|
| B | 31mm |
| r1 | 0.6mm |
| C1 | 22mm |
| d1 max | 29.5mm |
| d2 | 60mm |
| d3 | M24x2 |
| h1 | 94mm |
| L3 | 48mm |
| L4 | 124mm |
| L5 | 12mm |
| d4 | 33.5mm |
| d5 | 42mm |
| S | 36mm |
| Ball diameter | 1-11/16 inch |
| Dynamic load Cr | 47.1mm |
| Static load Cor | 74.1mm |
| Max angle α | 15 |
| Weight | 0.75 kg |
