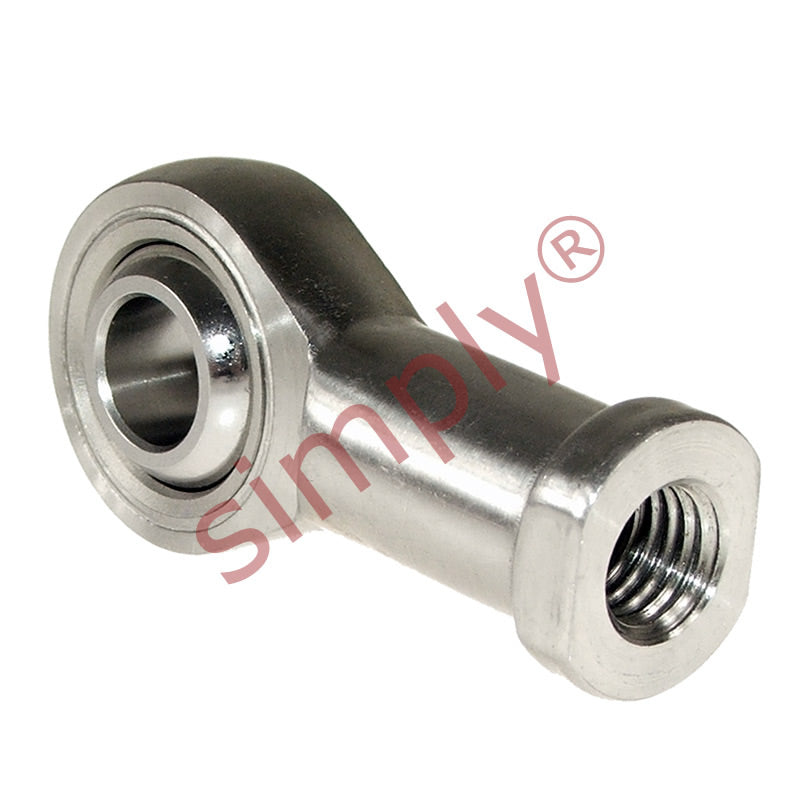

Budget SSPHS20 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Budget SSPHS20 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Regular price
€52,33
ex VAT
Regular price
Sale price
€52,33
ex VAT
In stock
Price Break
10+
€39,85
19+
€37,62
29+
€37,17
39+
€36,72
49+
€36,27
74+
€35,82
99+
€33,59
199+
€33,14
249+
€32,69
499+
€32,24
999+
€31,35
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE Lined
Technical
Technical
| d | 20mm |
|---|---|
| B | 25mm |
| r1 | 0.6mm |
| C1 | 18mm |
| d1 max | 24.3mm |
| d2 | 46mm |
| d3 | M20x1.5 |
| h1 | 77mm |
| L3 | 40mm |
| L4 | 100mm |
| L5 | 10mm |
| d4 | 27.5mm |
| d5 | 34mm |
| S | 30mm |
| Ball diameter | 1-3/8 inch |
| Dynamic load Cr | 31.4mm |
| Static load Cor | 36.2mm |
| Max angle α | 14 |
| Weight | 0.38 kg |
