SKU: SS.D1500-0240

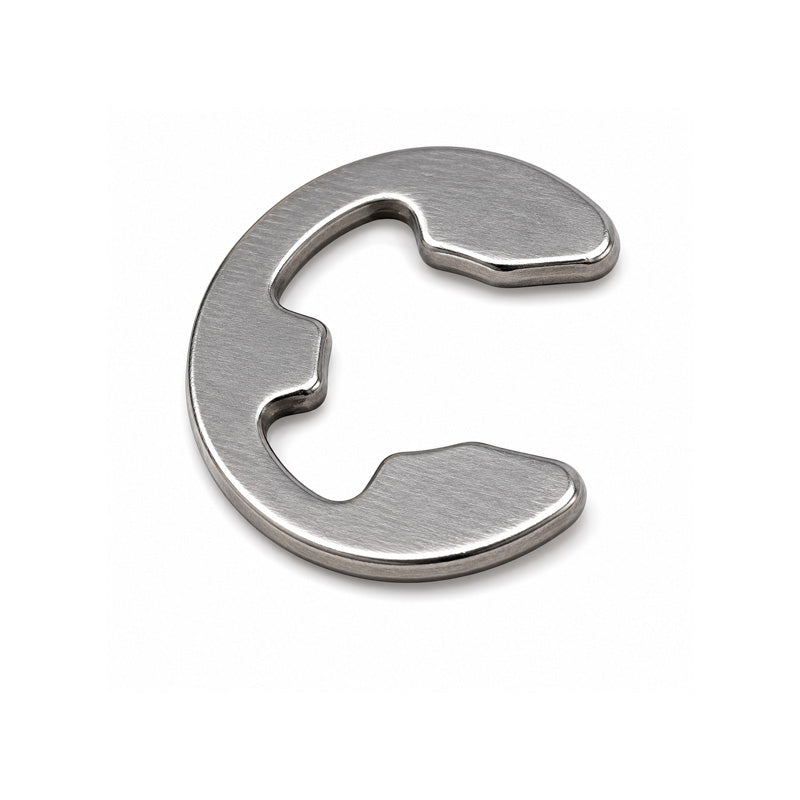

Stainless Steel E-Clip for 24mm Groove Diameter
Stainless Steel E-Clip for 24mm Groove Diameter
Regular price
€5,60
ex VAT
Regular price
Sale price
€5,60
ex VAT
Equivalent to: SS.D1500-0240
In stock
Price Break
5+
€4,74
10+
€4,55
20+
€4,45
50+
€4,31
100+
€4,22
500+
€3,98
1000+
€3,35
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
Equivalent: SS.D1500-0240
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 30mm
- Thickness:
- 2mm
- Groove Diameter:
- 24mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 30mm |
| Shaft Range | 25mm to 38mm |
| Thickness (s) | 2mm |
| Thickness Tolerance | ±0.03mm |
| Max Outisde Diameter (d4) | 43.5mm |
| Shoulder Length (n) | 4mm |
| a | 21.88mm |
| a Tolerance | ±0.084mm |
| Weight | 8.55kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 6000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 24mm |
| Groove Diameter Tolerance | +0mm / -0.13mm |
| Groove Width (m) | 2.05mm |
| Groove Depth (g) | 3mm |
