SKU: SS.D1300-125

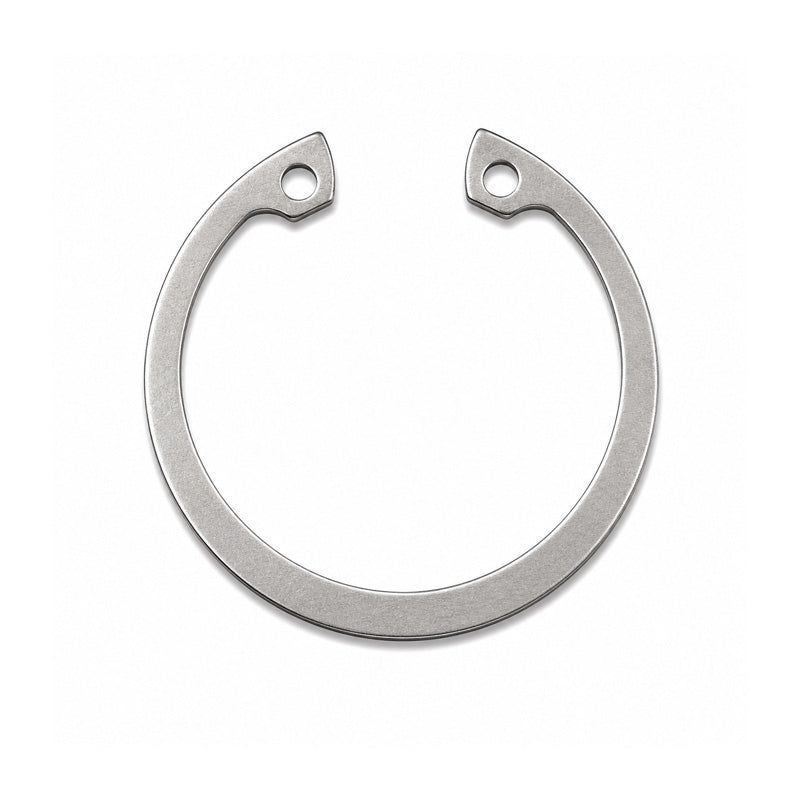

Stainless Internal Circlip for 125mm Bore Diameter Un-Sprung Dia 132mm
Stainless Internal Circlip for 125mm Bore Diameter Un-Sprung Dia 132mm
Regular price
€9,03
ex VAT
Regular price
Sale price
€9,03
ex VAT
Equivalent to: SSD1300-125
In stock
Price Break
5+
€7,65
10+
€7,34
20+
€7,19
50+
€6,96
100+
€6,80
500+
€6,42
1000+
€5,41
Description
Description
|
Stainless Steel Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
Equivalent: SSD1300-125
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 125mm
- Outside Diameter:
- 132mm
- Material:
- Stainless Steel
- Thickness:
- 4mm
- Groove Diameter:
- 129mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size | 125mm |
| Thickness s | 4mm |
| Thickness tolerance | -0.1mm |
| Unstressed diameter d3 | 132mm |
| Unstressed diameter tolerance | +1.50-0.63mm |
| Lug a | 11mm |
| Beam b | 10mm |
| d5 | 4mm |
| Weight | 79.00 g |
| --- | Groove Requirements |
| Groove diameter | 129mm |
| Groove tolerance | 0.63mm |
| Minimum groove width | 4.15mm |
| Groove depth | 2mm |
