SKU: SP160-M3200

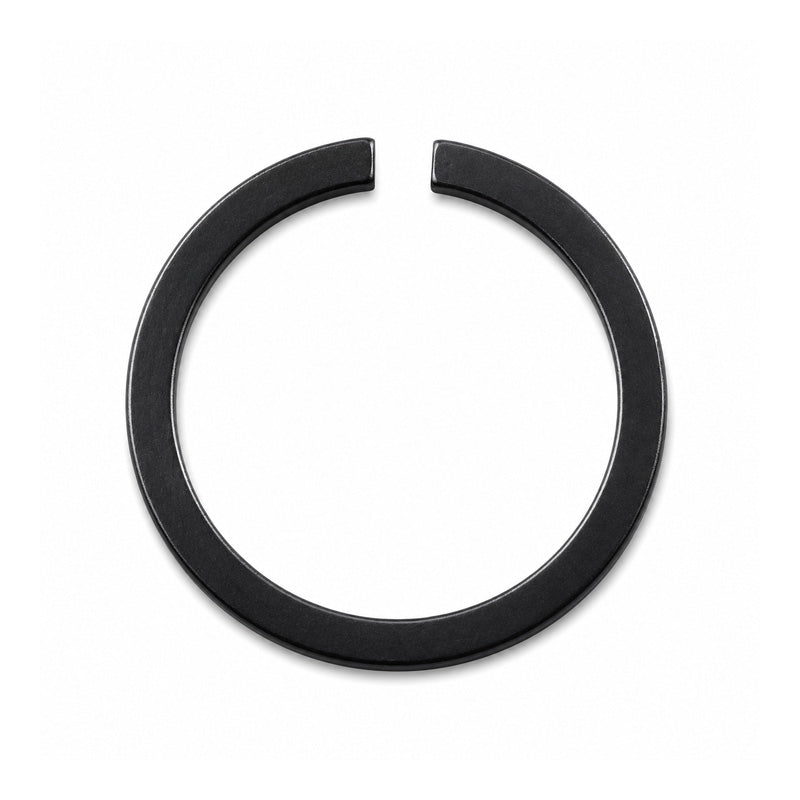

SP160 Snap Ring to Suit 160mm Outside Diameter of Bearing
SP160 Snap Ring to Suit 160mm Outside Diameter of Bearing
Regular price
€5,61
ex VAT
Regular price
Sale price
€5,61
ex VAT
Equivalent to: DIN5417 DIN 5417 CBS160 CBS-160 3200-160 SP160 SP-160 M3200-160
In stock
Price Break
5+
€4,75
10+
€4,56
20+
€4,46
50+
€4,32
100+
€4,22
500+
€3,98
1000+
€3,36
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
Equivalent: DIN5417 DIN 5417 CBS160 CBS-160 3200-160 SP160 SP-160 M3200-160
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 152.9mm
- Shaft Size:
- 160mm
Technical
Technical
| d1 | 160mm |
|---|---|
| s | 2.82mm (Tolerance -0.1) |
| b | 7.21mm (Tolerance -0.15) |
| d3 | 152.9mm (Tolerance 1.6) |
| e approx | 7mm |
| r min | 0.7mm |
| d2 | 155.22mm (Tolerance -0.5) |
| m | 3.1mm (Tolerance 0.3) |
| C2 | 169.7mm |
| FN | 206kN |
| FR | 92kN |
| g | 4 |
| FRg | 14.1kN |
| kN | 220mm |
| Max Rpm x1000 | 1 |
| Weight | 0.081g |
