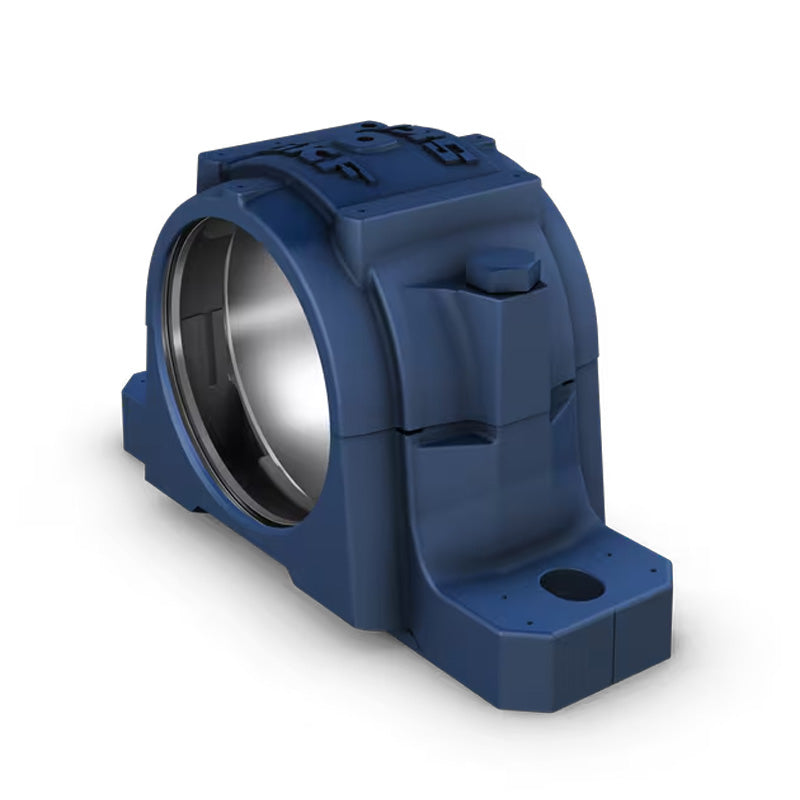

SKF SNLN3052 Cast Iron Split Pillow Block Housing
SKF SNLN3052 Cast Iron Split Pillow Block Housing
Regular price
€3.640,82
ex VAT
Regular price
Sale price
€3.640,82
ex VAT
In stock
Price Break
4+
€2.772,85
9+
€2.617,07
19+
€2.585,91
29+
€2.554,76
39+
€2.523,60
49+
€2.492,45
59+
€2.336,67
69+
€2.305,51
79+
€2.274,36
89+
€2.243,20
99+
€2.180,89
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 680mm
Technical
Technical
| da | 240mm |
|---|---|
| Ca | 124mm |
| Da | 400mm |
| A | 290mm |
| A1 | 220mm |
| H | 475mm |
| H1 | 240mm |
| H2 | 80mm |
| J | 680mm |
| L | 820mm |
| N | 70mm |
| N1 | 48mm |
| J6 | 760mm |
| J7 | 80mm |
| N4 max | 16mm |
| ba | 101mm |
| bc | 120mm |
