SKU: SM16-1-SKF

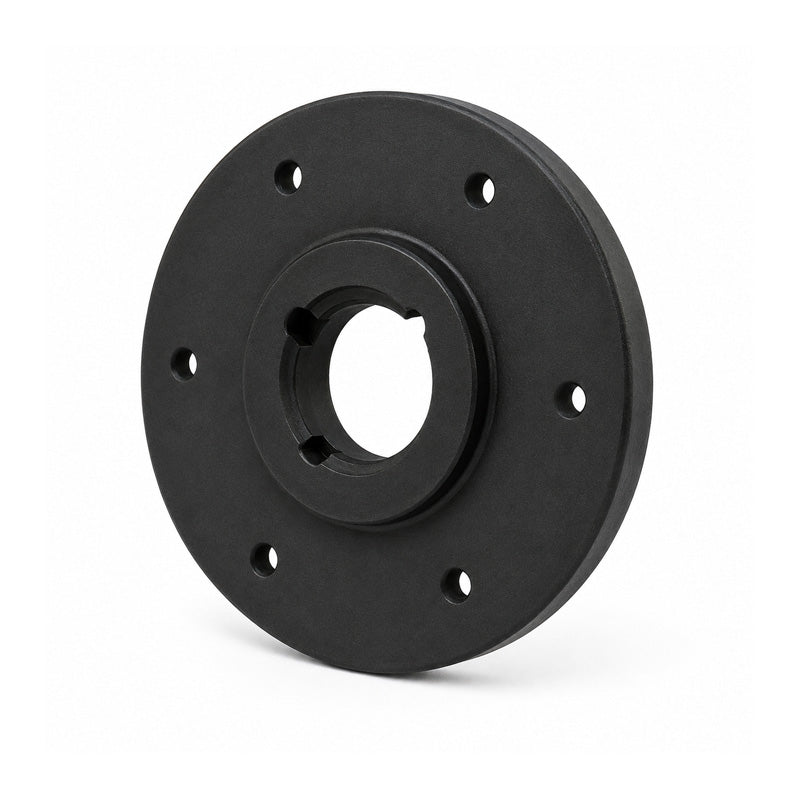

SKF SM16-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM16-1 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
€40,39
ex VAT
Regular price
Sale price
€40,39
ex VAT
In stock
Price Break
10+
€35,95
19+
€33,93
29+
€33,52
39+
€33,12
49+
€32,72
74+
€32,31
99+
€30,29
199+
€29,89
249+
€29,48
499+
€29,08
999+
€28,27
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1610
- Outside Diameter:
- 200mm
- Width:
- 26mm
Technical
Technical
| Hub Reference | SM16-1 |
|---|---|
| Bush Number | 1610 |
| A | 200mm |
| B | 110mm |
| C | 150mm |
| D | 26mm |
| E | 7.5mm |
| F/G | 90mm |
| H | 9.25mm |
| J | 6x7.5mm |
