SKU: SM-UCFL212D1-NTN

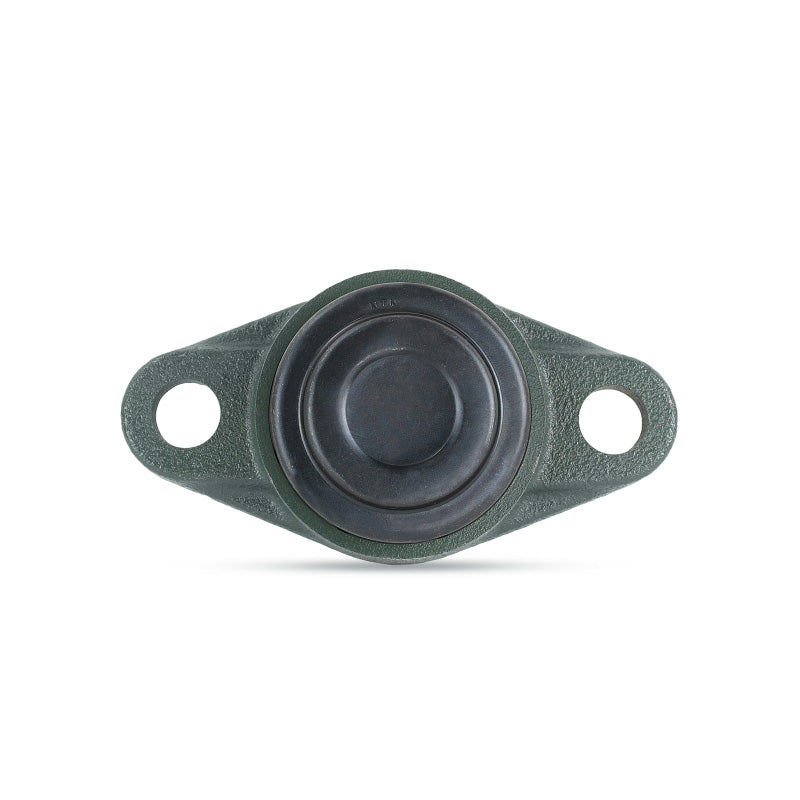

NTN SM-UCFL212D1 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFL212D1 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€129,52
ex VAT
Regular price
Sale price
€129,52
ex VAT
In stock
Price Break
3+
€109,72
4+
€105,29
9+
€103,07
19+
€99,75
49+
€97,53
99+
€91,99
499+
€77,58
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| H | 250mm |
| J | 202mm |
| A<sub>2</sub> | 29mm |
| A<sub>1</sub> | 18mm |
| A | 48mm |
| N | 23mm |
| L | 140mm |
| B | 65.1mm |
| S | 25.4mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 80mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4 kg |
