SKU: SM-UCF208D1-NTN

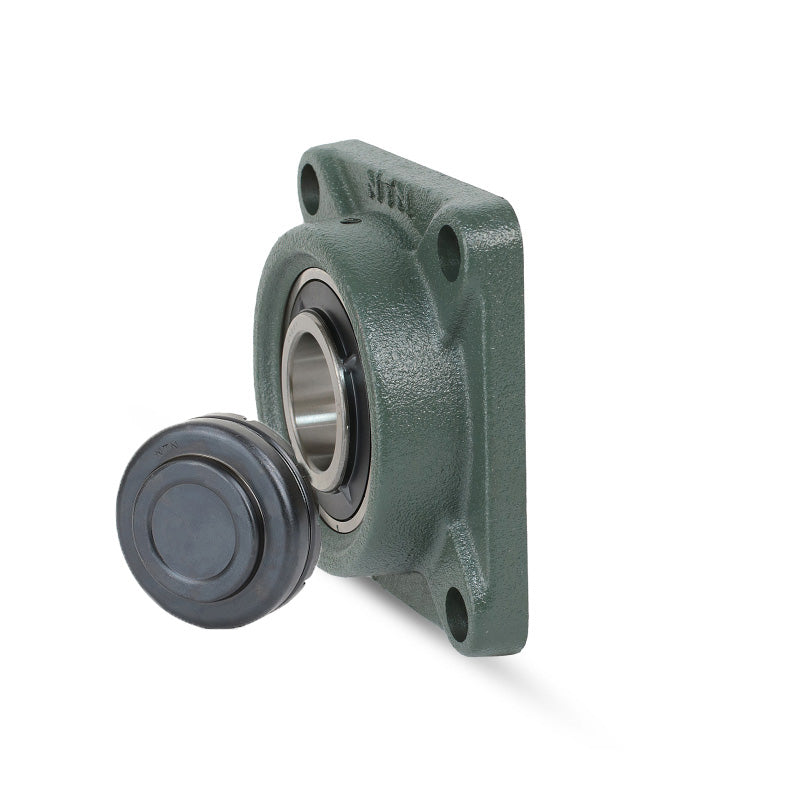

NTN SM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€64,76
ex VAT
Regular price
Sale price
€64,76
ex VAT
In stock
Price Break
3+
€54,87
4+
€52,65
9+
€51,54
19+
€49,88
49+
€48,77
99+
€46,00
499+
€38,79
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 62mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 1.8 kg |
