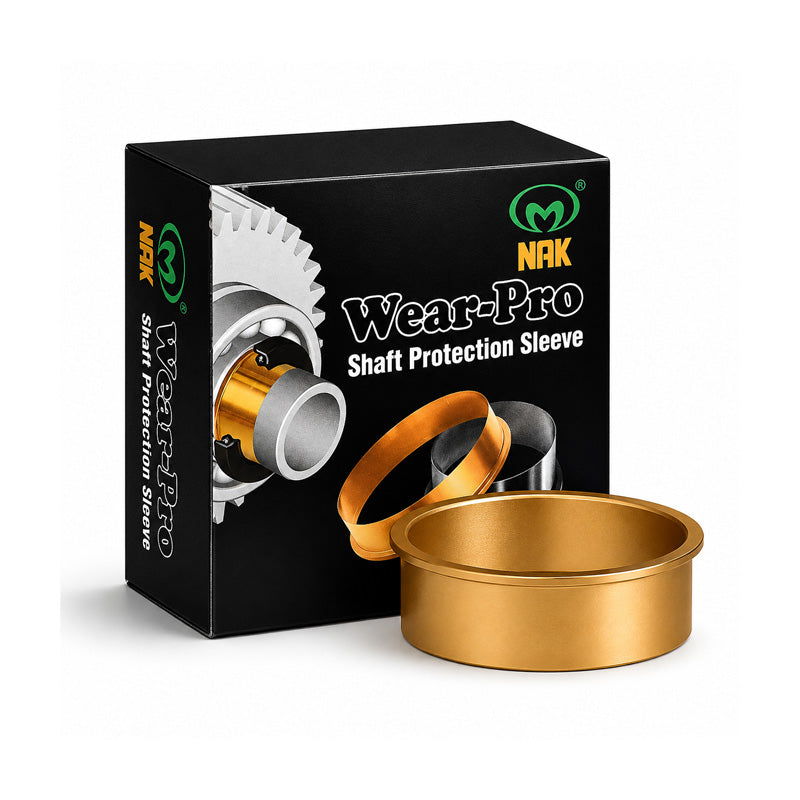

NAK SLG245 Hardened Stainless Sleeve for Shafts 5.896-5.906 inch - Allow 7-10 Days
NAK SLG245 Hardened Stainless Sleeve for Shafts 5.896-5.906 inch - Allow 7-10 Days
Regular price
€77,71
ex VAT
Regular price
Sale price
€77,71
ex VAT
In stock
Price Break
10+
€65,84
19+
€63,18
29+
€61,85
39+
€59,85
49+
€58,52
74+
€55,20
99+
€46,55
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.181 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 5.906 inch
- Flange Diameter:
- 6.26 inch
Technical
Technical
| Shaft Diameter Range (A) | 5.896-5.906 inch |
|---|---|
| Nominal Shaft Diameter (A) | 5.906 inch |
| Flange Diameter (D) | 6.26 inch |
| Width on Shaft (X) | 1.024 inch |
| Overall Width (Y) | 1.181 inch |
| Installation Depth (Z) | 1.28 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
