SKU: SLG209_NAK

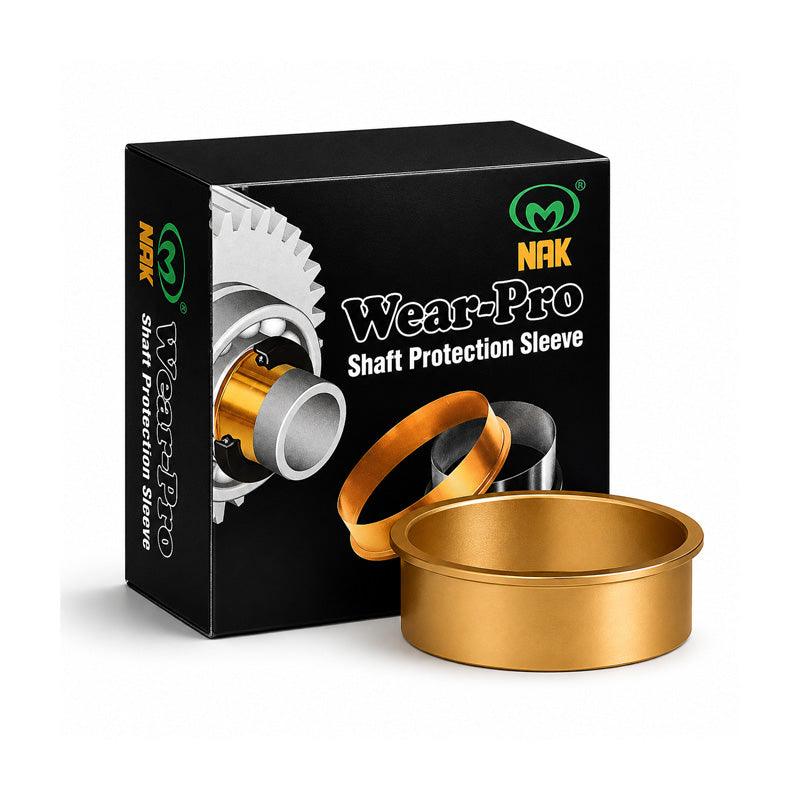

NAK SLG209 Hardened Stainless Sleeve for Shafts 109.780-110.000mm - Allow 7-10 Days
NAK SLG209 Hardened Stainless Sleeve for Shafts 109.780-110.000mm - Allow 7-10 Days
Regular price
€66,25
ex VAT
Regular price
Sale price
€66,25
ex VAT
In stock
Price Break
5+
€65,59
10+
€62,94
20+
€61,61
50+
€59,63
100+
€58,30
500+
€54,99
1000+
€46,38
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 15mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 110mm
- Flange Diameter:
- 125mm
Technical
Technical
| Shaft Diameter Range (A) | 109.780-110.000mm |
|---|---|
| Nominal Shaft Diameter (A) | 110mm |
| Flange Diameter (D) | 125mm |
| Width on Shaft (X) | 11.4mm |
| Overall Width (Y) | 15mm |
| Installation Depth (Z) | 32.9mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
