SKU: SLG163_IMP_NAK

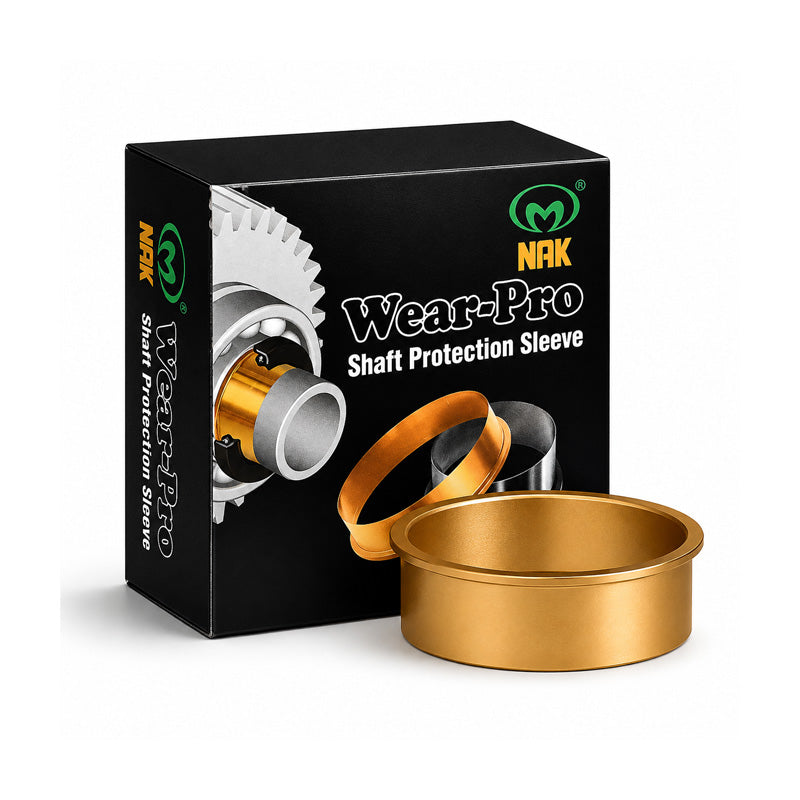

NAK SLG163 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
NAK SLG163 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
Regular price
€31,06
ex VAT
Regular price
Sale price
€31,06
ex VAT
In stock
Price Break
10+
€26,31
19+
€25,25
29+
€24,72
39+
€23,92
49+
€23,39
74+
€22,06
99+
€18,61
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.25 inch
- Flange Diameter:
- 3.587 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.250-3.256 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.25 inch |
| Flange Diameter (D) | 3.587 inch |
| Width on Shaft (X) | 0.811 inch |
| Overall Width (Y) | 1 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
