SKU: SLG010_IMP_NAK
NAK SLG010 Hardened Stainless Sleeve for Shafts 0.704-0.709 inch - Allow 7-10 Days
NAK SLG010 Hardened Stainless Sleeve for Shafts 0.704-0.709 inch - Allow 7-10 Days
Regular price
€18,01
ex VAT
Regular price
Sale price
€18,01
ex VAT
In stock
Price Break
5+
€17,83
10+
€17,11
20+
€16,75
50+
€16,21
100+
€15,85
500+
€14,95
1000+
€12,61
Couldn't load pickup availability
Description
Description

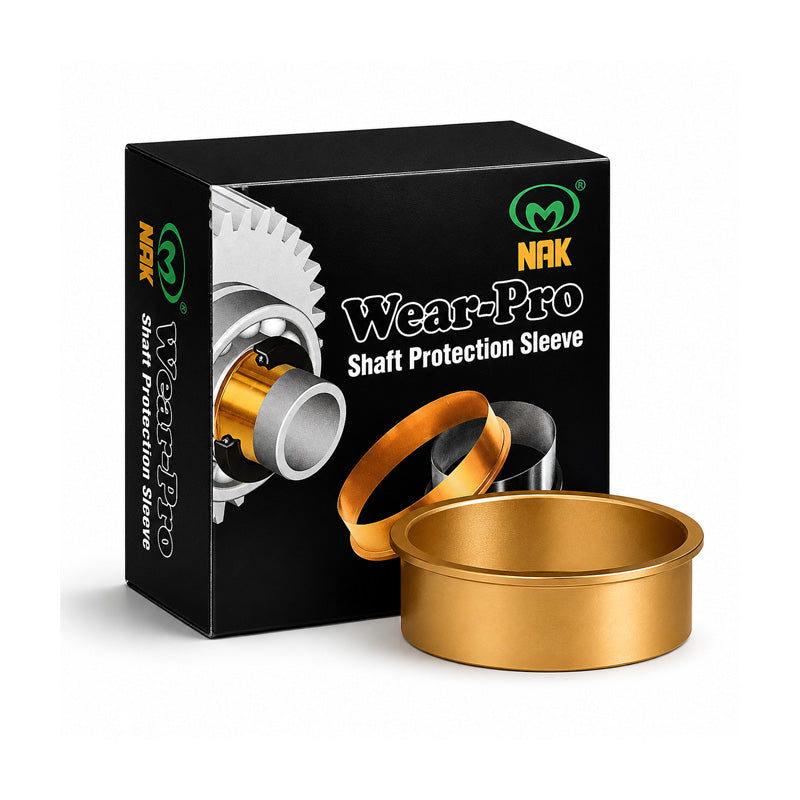

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.433 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.706 inch
- Flange Diameter:
- 0.961 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.704-0.709 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.706 inch |
| Flange Diameter (D) | 0.961 inch |
| Width on Shaft (X) | 0.315 inch |
| Overall Width (Y) | 0.433 inch |
| Installation Depth (Z) | 1.811 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
