SKU: SLC50DEC-RHP

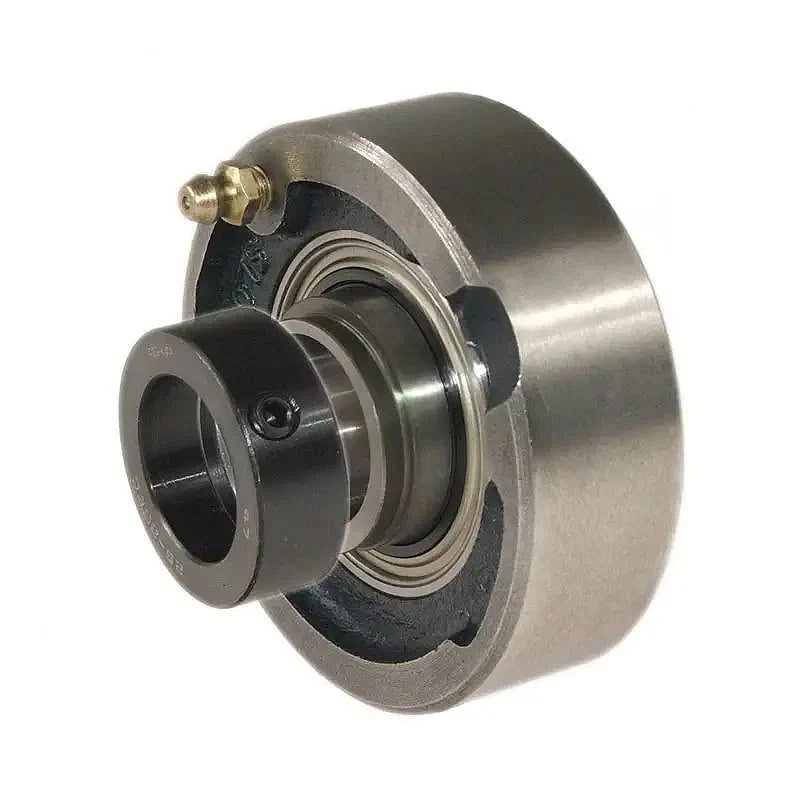

RHP SLC50DEC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP SLC50DEC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Regular price
€120,22
ex VAT
Regular price
Sale price
€120,22
ex VAT
In stock
Price Break
10+
€91,56
20+
€86,42
30+
€85,39
40+
€84,36
50+
€83,33
75+
€82,30
100+
€77,16
200+
€76,13
250+
€75,10
500+
€74,07
1000+
€72,01
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A3 | 56.72mm |
| B3 | 62.7mm |
| s2 | 24.65mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
