SKU: SLC45-RHP

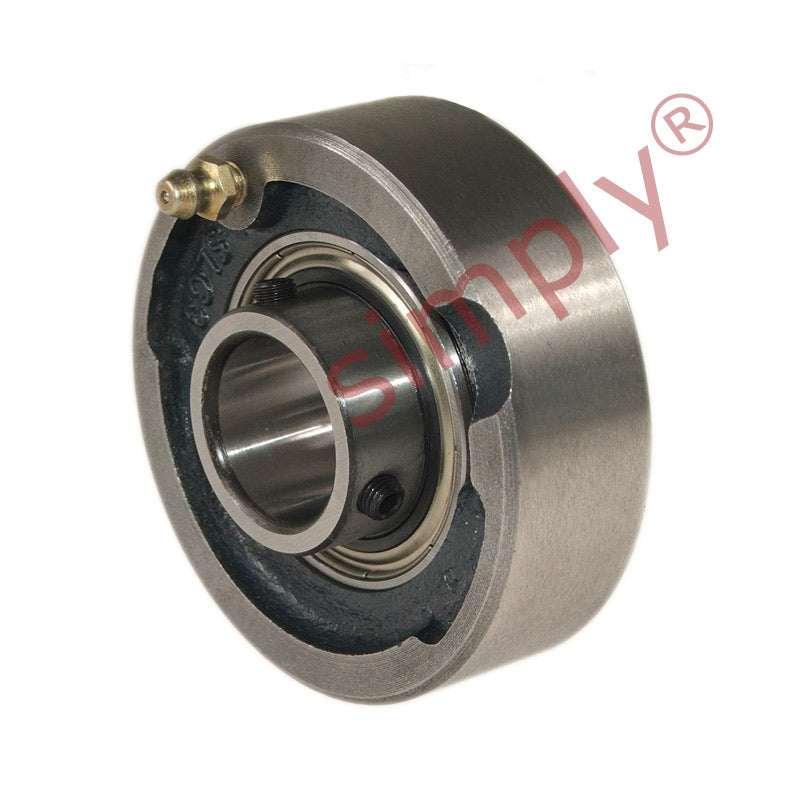

RHP SLC45 Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
RHP SLC45 Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
Regular price
€88,71
ex VAT
Regular price
Sale price
€88,71
ex VAT
In stock
Price Break
10+
€67,56
20+
€63,76
30+
€63,00
40+
€62,24
50+
€61,48
75+
€60,73
100+
€56,93
200+
€56,17
250+
€55,41
500+
€54,65
1000+
€53,13
Share this product
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.15mm |
| A | 36.51mm |
| A1 | 48.44mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
