SKU: SLC1A-RHP

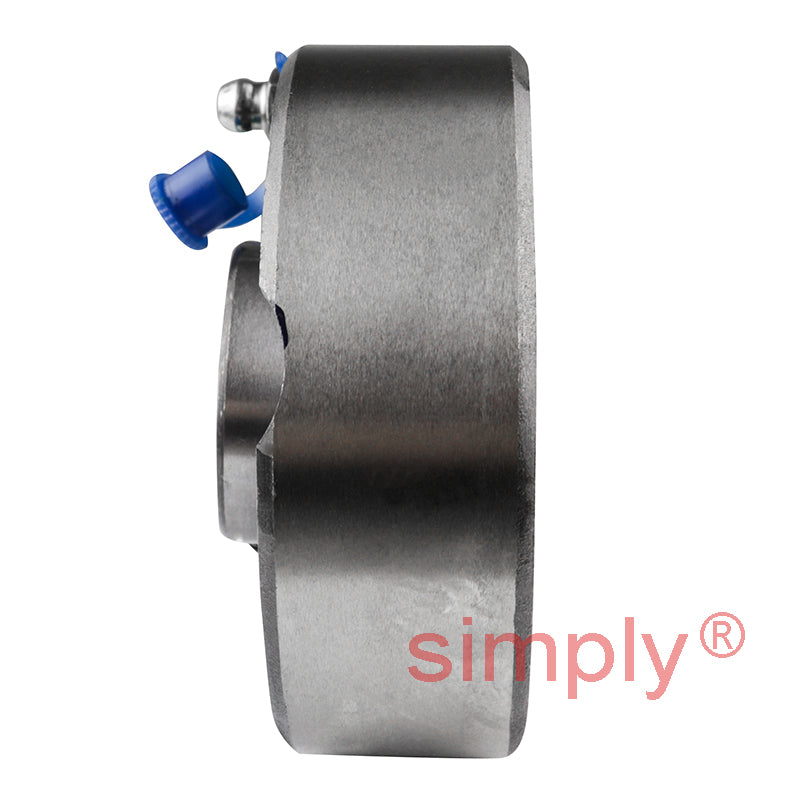

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price €15,31 ex VAT
Regular price Sale price €15,31 ex VAT
Sale Sold out

In stock

Price Break
10+ €11,66
20+ €11,00
30+ €10,87
40+ €10,74
50+ €10,61
75+ €10,48
100+ €9,83
200+ €9,69
250+ €9,56
500+ €9,43
1000+ €9,17
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
L 3.126 inch
A 1.031 inch
A1 1.297 inch
A2 1.438 inch
A3 1.577 inch
B 1.343 inch
B1 1077 inch
B2 1.217 inch
B3 1.748 inch
s 0.564 inch
s1 0.298 inch
s2 0.689 inch
d1 1.339 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
