SKU: SLC1.3/4-RHP

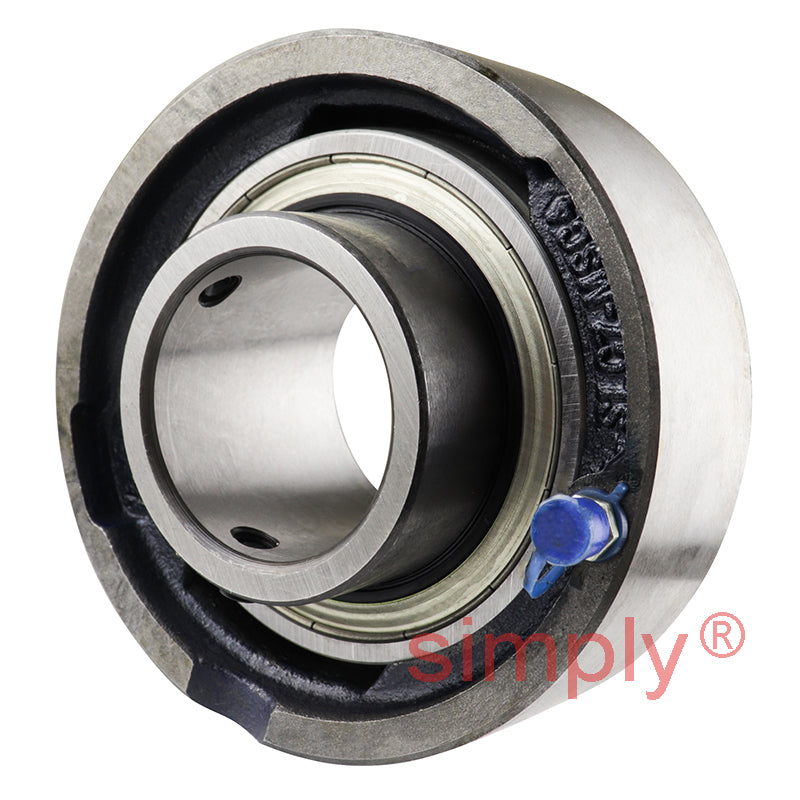

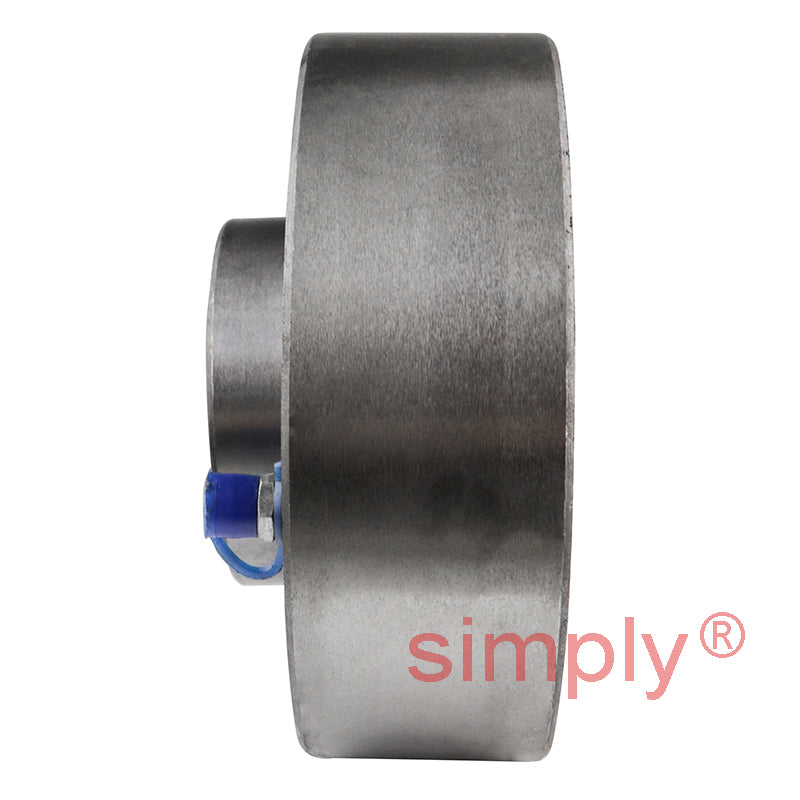

RHP SLC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
Regular price
€95,42
ex VAT
Regular price
Sale price
€95,42
ex VAT
In stock
Price Break
10+
€84,92
19+
€80,15
29+
€79,20
39+
€78,24
49+
€77,29
74+
€76,34
99+
€71,57
199+
€70,61
249+
€69,66
499+
€68,70
999+
€66,79
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A1 | 1.907 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
