SKU: SK001

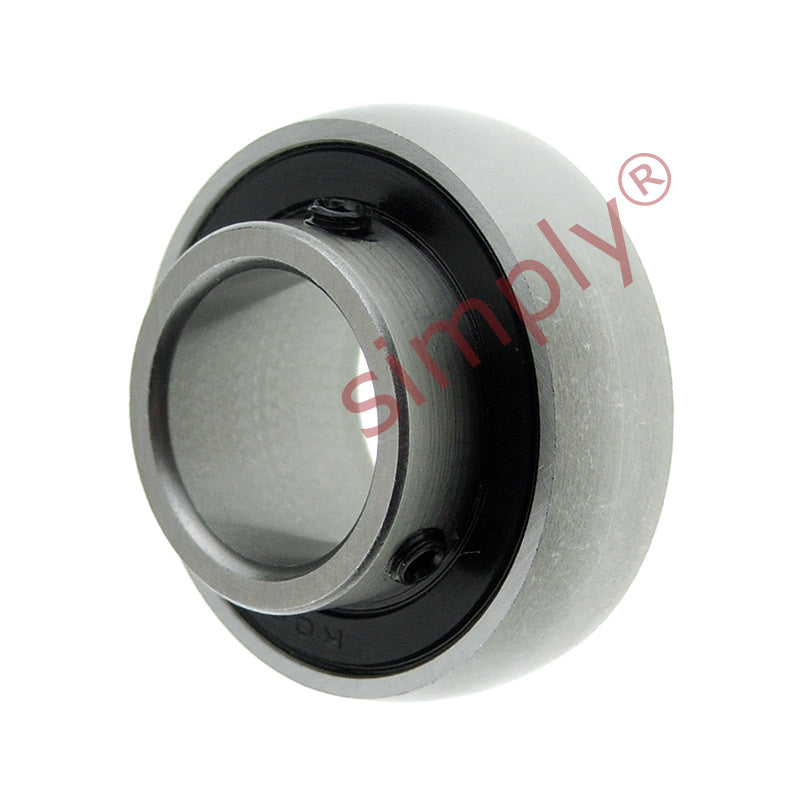

SK001 Stainless Steel Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia - Allow 2-3 Days
SK001 Stainless Steel Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia - Allow 2-3 Days
Regular price
€18,11
ex VAT
Regular price
Sale price
€18,11
ex VAT
In stock
Price Break
3+
€15,35
4+
€14,73
9+
€14,42
19+
€13,95
49+
€13,64
99+
€12,87
499+
€10,85
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Style:
- SK
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Bi | 14.5mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 17.35mm |
| Grub screw | M3x0.35 |
| Dynamic load | 520N ~ 53.025 kgf |
| Static load | 245N ~ 24.983 kgf |
| Weight | 0.03 kg |
