SKU: SIL50TXE-2LS-SKF

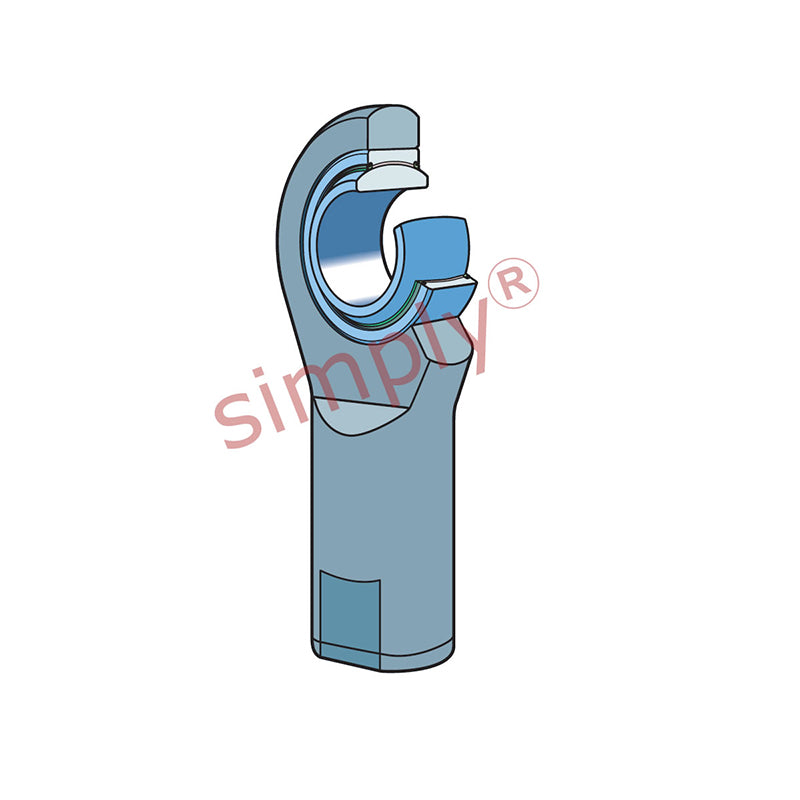

SKF SIL50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M52x3 Thread
SKF SIL50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M52x3 Thread
Regular price
€515,12
ex VAT
Regular price
Sale price
€515,12
ex VAT
In stock
Price Break
10+
€458,46
19+
€432,70
29+
€427,55
39+
€422,40
49+
€417,25
74+
€412,10
99+
€386,34
199+
€381,19
249+
€376,04
499+
€370,89
999+
€360,58
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M52x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 50mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 50mm |
|---|---|
| d2 max | 114mm |
| G 6H | M52x3 |
| B | 35mm |
| C1 max | 31mm |
| h1 | 195mm |
| a | 6deg |
| Dynamic load C | 440 kN |
| Static load Co | 270 kN |
| Weight | 4.5 kg |
| dk | 66mm |
| d4 | 70mm |
| l3 min | 68mm |
| l4 max | 254mm |
| l5 | 30mm |
| l7 min | 58mm |
| r1 min | 0.6mm |
| w h14 | 60mm |
