SKU: SIL15C-CDX

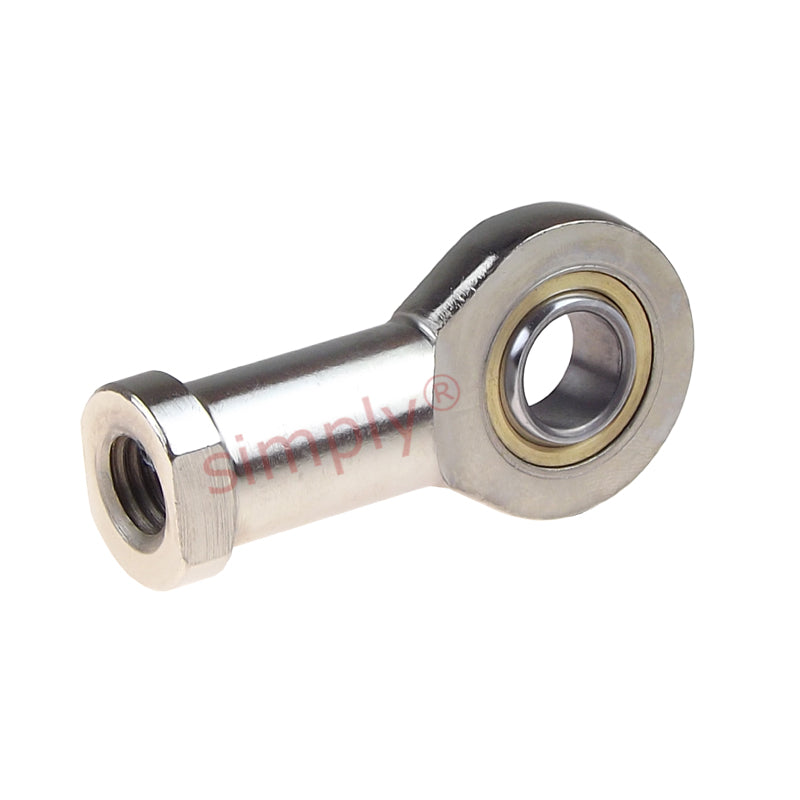

Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
Regular price
€27,88
ex VAT
Regular price
Sale price
€27,88
ex VAT
Equivalent to: GIL15UK
In stock
Price Break
10+
€24,81
19+
€23,42
29+
€23,14
39+
€22,86
49+
€22,58
74+
€22,30
99+
€20,91
199+
€20,63
249+
€20,35
499+
€20,07
999+
€19,52
Couldn't load pickup availability
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL15UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 15mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 15mm |
|---|---|
| d2 max | 41mm |
| G | M14 |
| B | 12mm |
| C1 max | 10.5mm |
| h1 | 61mm |
| Max misalignment angle | 8 degrees |
| Dynamic load | 18 kN |
| Static load | 37.5 kN |
| dk | 22mm |
| d4 | 22mm |
| l3 min | 21mm |
| l4 max | 83mm |
| l5 | 14mm |
| l7 min | 19mm |
| r1 min | 0.3mm |
| w h14 | 19mm |
| Weight | 0.18 kg |
