SKU: SIKB8F-SKF

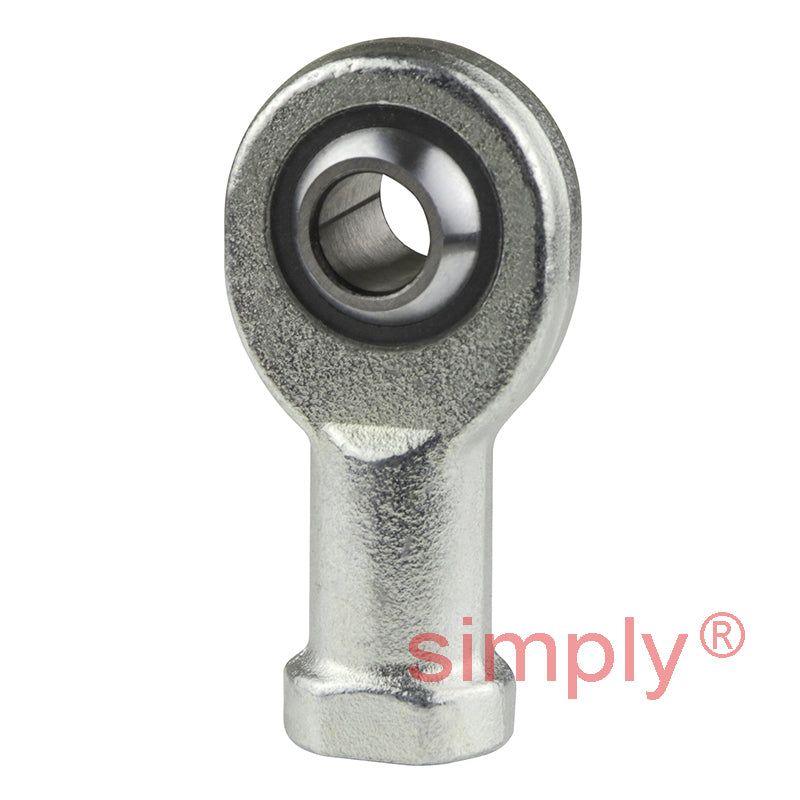

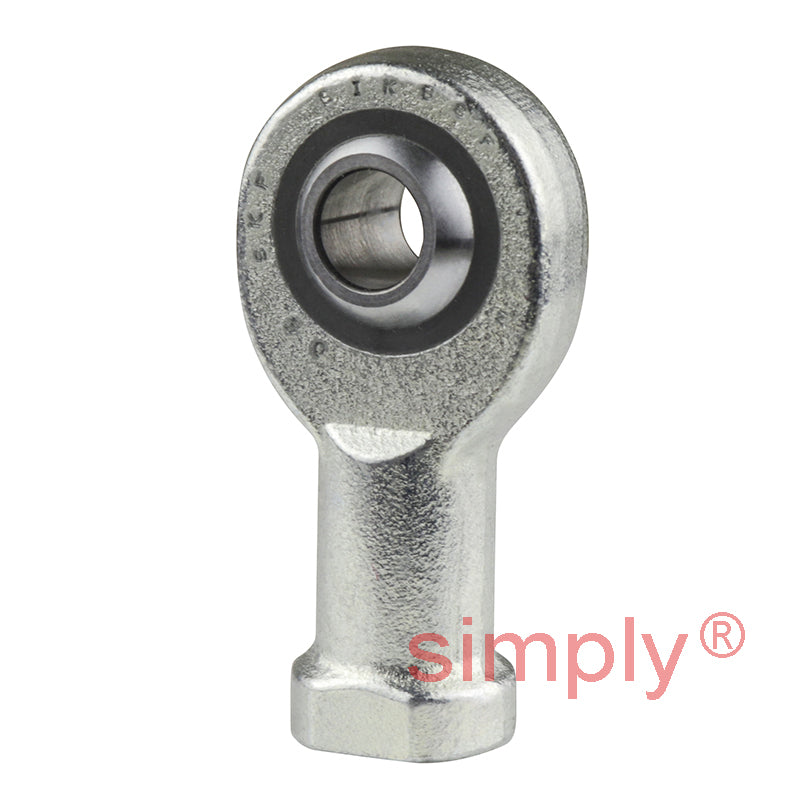

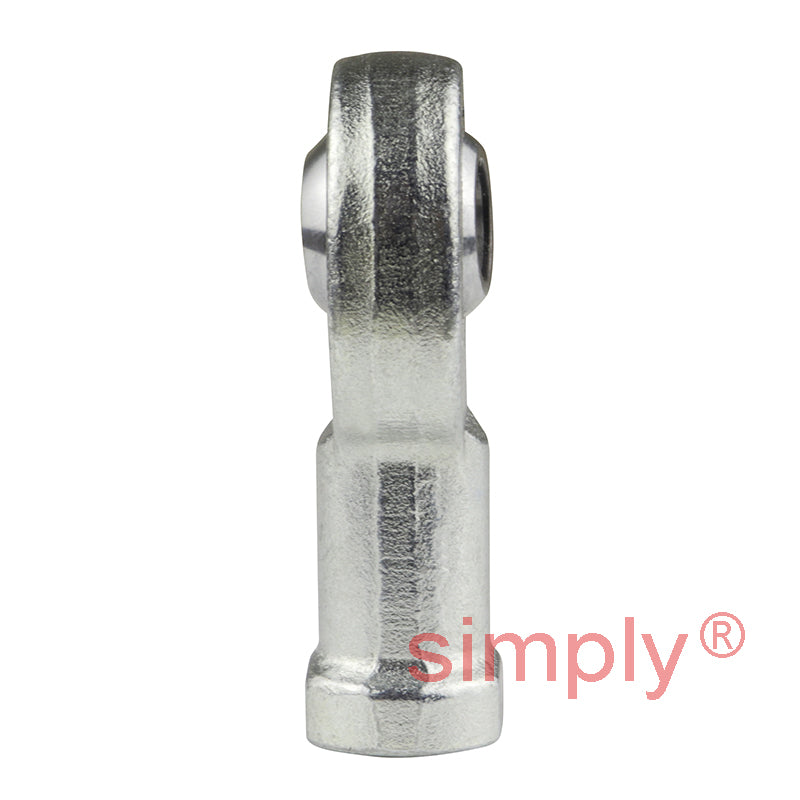

SKF SIKB8F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M8 Thread
SKF SIKB8F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M8 Thread
Regular price
€25,15
ex VAT
Regular price
Sale price
€25,15
ex VAT
Equivalent to: FS-M08
In stock
Price Break
10+
€19,15
19+
€18,08
29+
€17,86
39+
€17,65
49+
€17,43
74+
€17,22
99+
€16,14
199+
€15,92
249+
€15,71
499+
€15,49
999+
€15,06
Description
Description
|

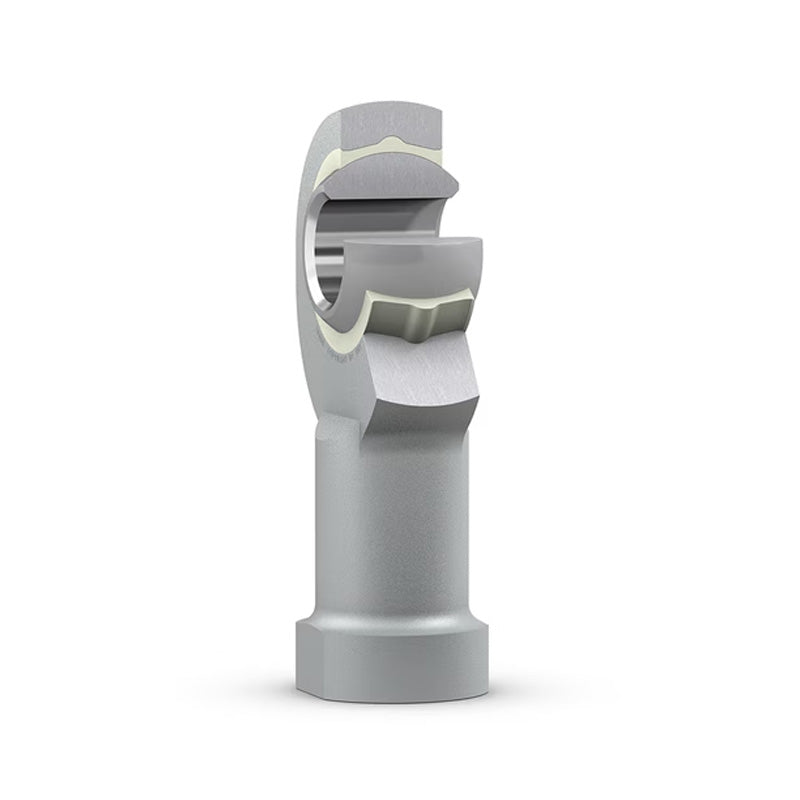

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FS-M08
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 12mm |
| C1 max | 9mm |
| h | 36mm |
| a | 14deg |
| Dynamic load C | 7.1 kN |
| Static load Co | 11.4 kN |
| Weight | 0.047 kg |
| dk | 15.8mm |
| d3 | 12.5mm |
| d4 max | 17mm |
| l3 min | 12mm |
| l4 max | 49mm |
| l5 | 5mm |
| l7 min | 12mm |
| r1 min | 0.3mm |
| w h14 | 14mm |
