SKU: SIKB14F-SKF

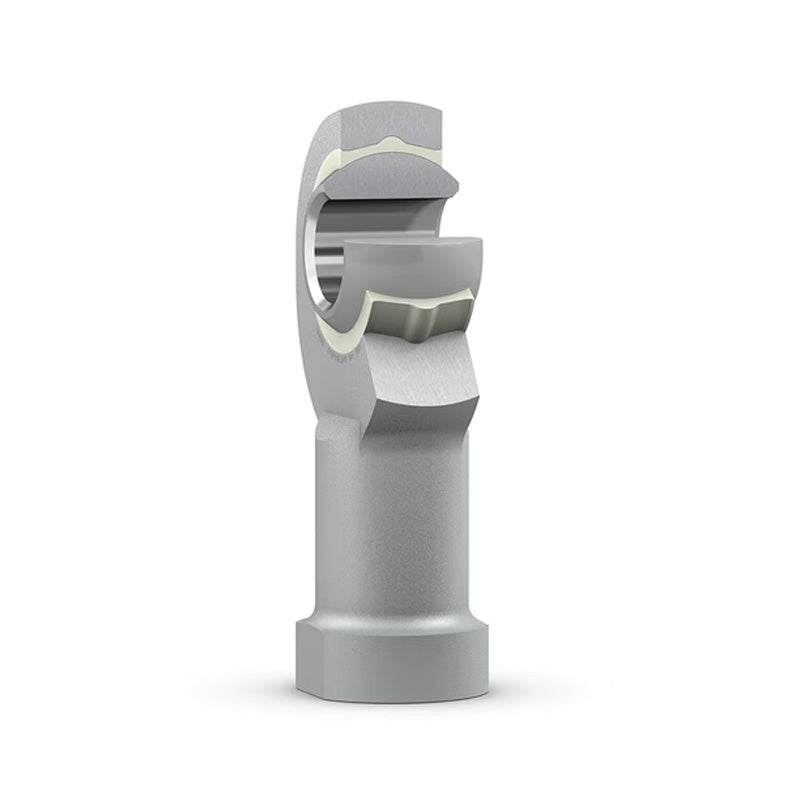

SKF SIKB14F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M14 Thread
SKF SIKB14F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M14 Thread
Regular price
€60,94
ex VAT
Regular price
Sale price
€60,94
ex VAT
Equivalent to: FS-M14
In stock
Price Break
10+
€46,41
19+
€43,80
29+
€43,28
39+
€42,76
49+
€42,24
74+
€41,72
99+
€39,11
199+
€38,59
249+
€38,07
499+
€37,55
999+
€36,50
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FS-M14
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h | 57mm |
| a | 16deg |
| Dynamic load C | 17 kN |
| Static load Co | 27.5 kN |
| Weight | 0.16 kg |
| dk | 25.4mm |
| d3 | 20mm |
| d4 max | 27mm |
| l3 min | 21mm |
| l4 max | 76mm |
| l5 | 8mm |
| l7 min | 18mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
