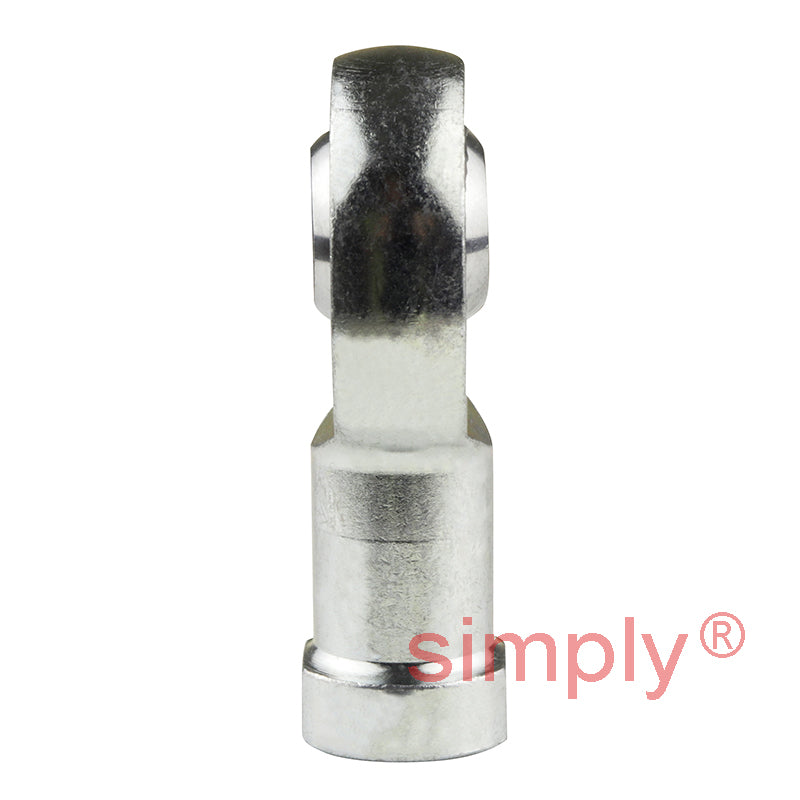

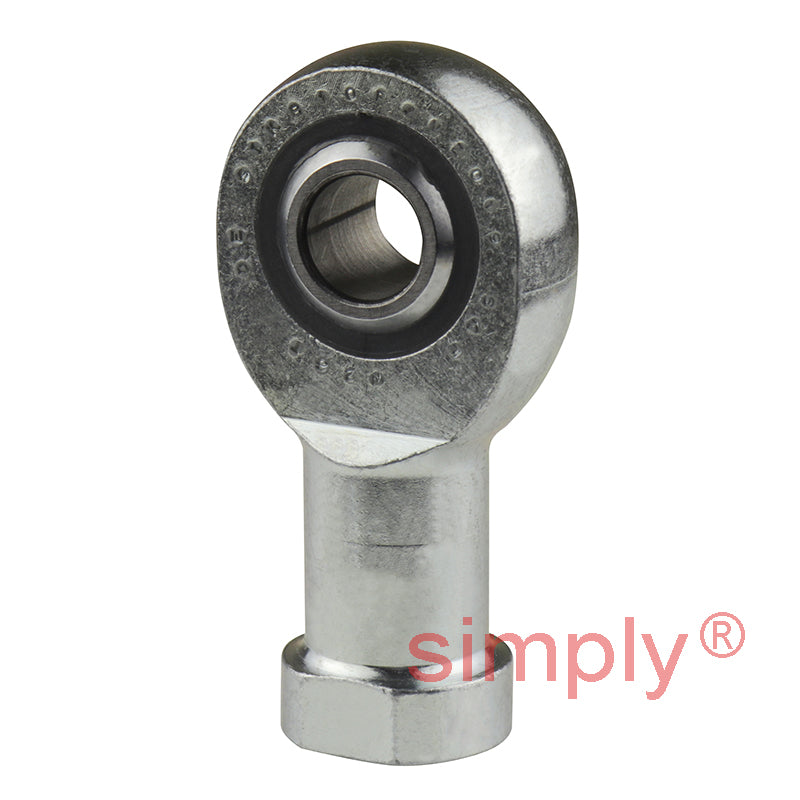

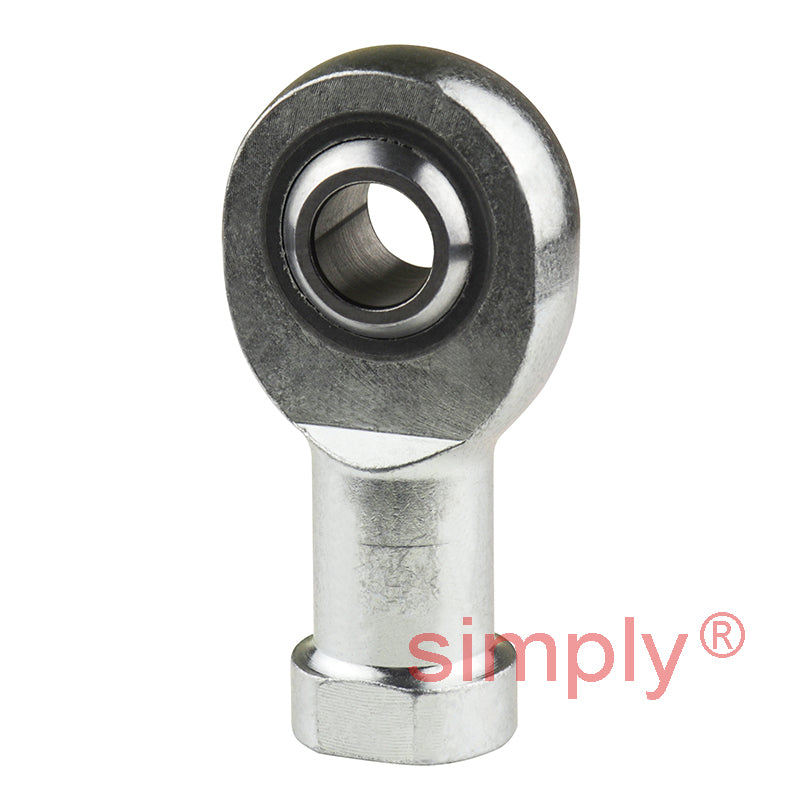

SKF SIKB10FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10x1.25 Thread
SKF SIKB10FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10x1.25 Thread
Regular price
€28,55
ex VAT
Regular price
Sale price
€28,55
ex VAT
In stock
Price Break
10+
€21,74
19+
€20,52
29+
€20,28
39+
€20,03
49+
€19,79
74+
€19,54
99+
€18,32
199+
€18,08
249+
€17,83
499+
€17,59
999+
€17,10
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 29mm |
| G | M10x1.25 |
| B | 14mm |
| C1 max | 10.5mm |
| h | 43mm |
| a | 13deg |
| Dynamic load C | 9.8 kN |
| Static load Co | 14.3 kN |
| Weight | 0.079 kg |
| dk | 19mm |
| d3 | 15mm |
| d4 max | 20mm |
| l3 min | 15mm |
| l4 max | 58mm |
| l5 | 6.5mm |
| l7 min | 14mm |
| r1 min | 0.3mm |
| w h14 | 17mm |
