SKU: SI60TXE-2LS-SKF

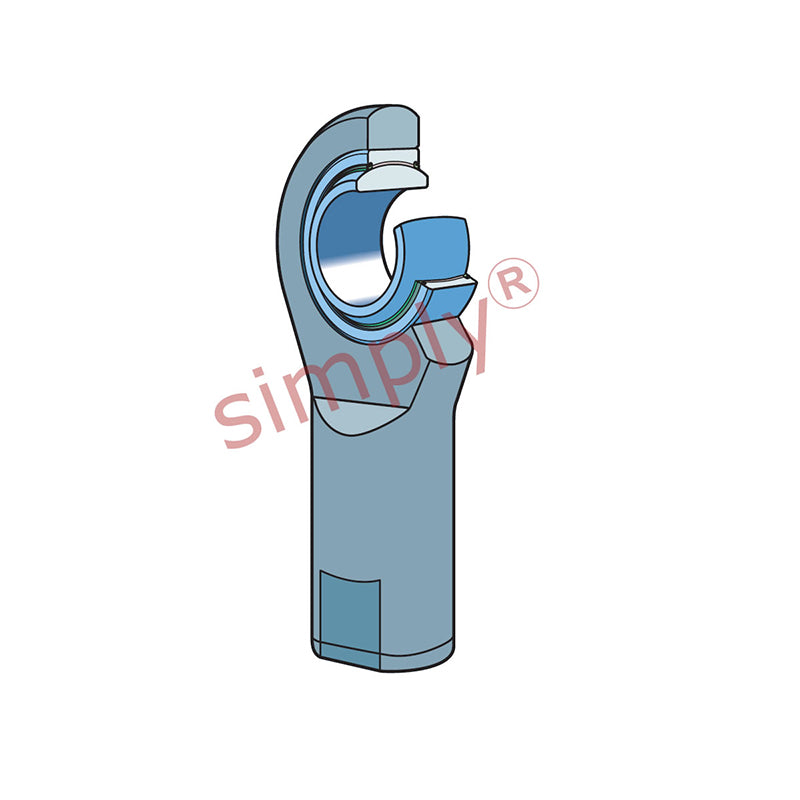

SKF SI60TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M60x4 Thread
SKF SI60TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M60x4 Thread
Regular price
€761,47
ex VAT
Regular price
Sale price
€761,47
ex VAT
In stock
Price Break
10+
€579,93
19+
€547,35
29+
€540,84
39+
€534,32
49+
€527,81
74+
€521,29
99+
€488,71
199+
€482,19
249+
€475,68
499+
€469,16
999+
€456,13
Description
Description
|
SKF SI..TXE2LS Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE fabric these rod end bearings are triple heavy duty sealed on both sides of the bearing and will operate within -40deg C to +110 deg C, load carrying capacity will be reduced over +65 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. The SIA ..TXE2LS differ in thread diameters and housing heights. Application: Suitable for very heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE Fabric |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M60x4
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 60mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 60mm |
|---|---|
| d2 max | 137mm |
| G 6H | M60x4 |
| B | 44mm |
| C1 max | 39mm |
| h1 | 225mm |
| a | 6deg |
| Dynamic load C | 695 kN |
| Static load Co | 400 kN |
| Weight | 7.1 kg |
| dk | 80mm |
| d4 | 82mm |
| l3 min | 70mm |
| l4 max | 296mm |
| l5 | 35mm |
| l7 min | 73mm |
| r1 min | 1mm |
| w h14 | 70mm |
