SKU: SER.201

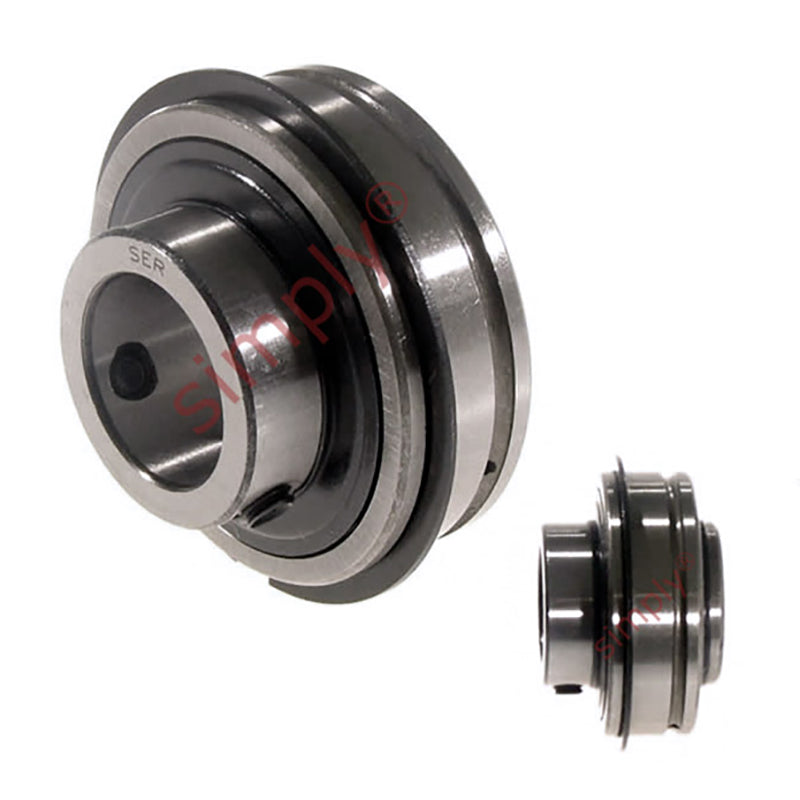

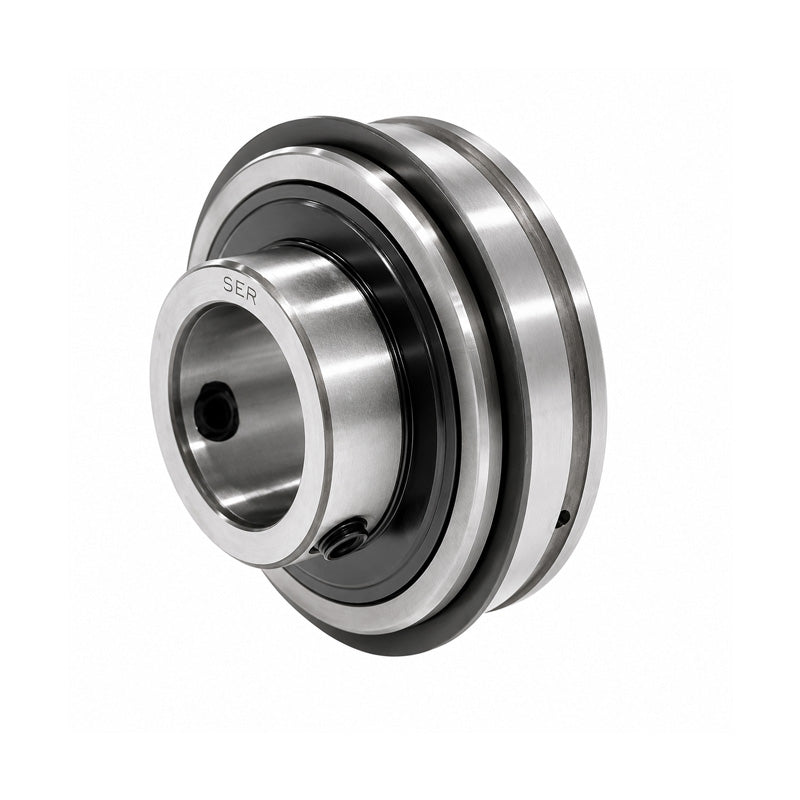

SER201 Metric Bearing Insert and Snap Ring 12mm Bore 47mm Outside Dia
SER201 Metric Bearing Insert and Snap Ring 12mm Bore 47mm Outside Dia
Regular price
€10,16
ex VAT
Regular price
Sale price
€10,16
ex VAT
In stock
Price Break
3+
€7,73
4+
€7,30
9+
€7,21
19+
€7,13
49+
€7,04
99+
€6,95
499+
€6,52
999+
€6,43
1999+
€6,34
2999+
€6,26
4999+
€6,08
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 47mm
- Style:
- SER
Technical
Technical
| d | 12mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
