SKU: SCHB2.1/4-RHP

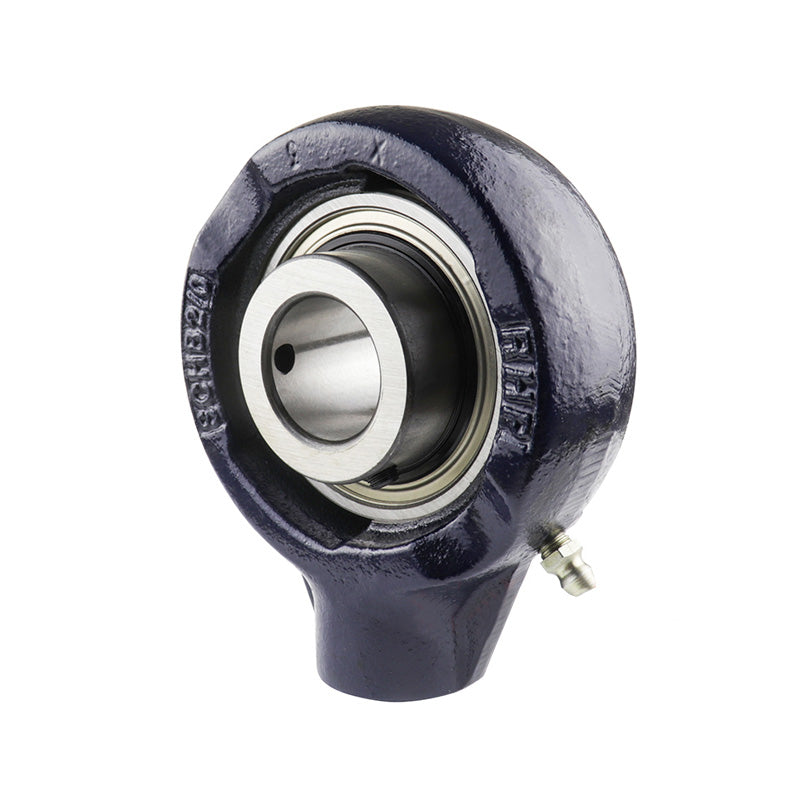

RHP SCHB2-1/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter

RHP SCHB2-1/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter
Regular price €200,20 ex VAT
Regular price Sale price €200,20 ex VAT
Sale Sold out

In stock

Price Break
10+ €152,48
20+ €143,91
30+ €142,20
40+ €140,48
50+ €138,77
75+ €137,06
100+ €128,49
200+ €126,78
250+ €125,07
500+ €123,35
1000+ €119,93
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/4 inch
G1 1.142 inch
L 5.63 inch
H 6.831 inch
H1 4 inch
Threads 1-1/4 BSP
A 2.303 inch
A1 1.218 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
