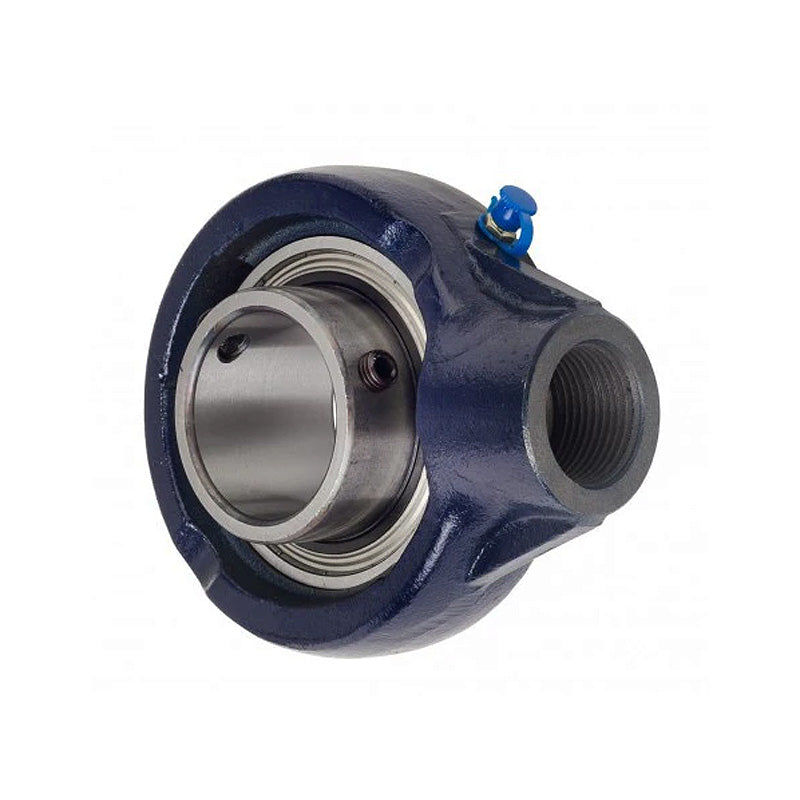

RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
RHP SCH1 Metric Thread Cast Iron Hanger Bearing Unit and 1 inch Bore Insert 89mm Outside Diameter
Regular price
€74,60
ex VAT
Regular price
Sale price
€74,60
ex VAT
In stock
Price Break
10+
€56,82
20+
€53,63
30+
€52,99
40+
€52,35
50+
€51,71
75+
€51,07
100+
€47,88
200+
€47,24
250+
€46,60
500+
€45,97
1000+
€44,69
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 89mm
- Style:
- SCH
Technical
Technical
| Bore | 1 inch |
|---|---|
| G1 | 0.63 inch |
| L | 3.504 inch |
| H | 4.232 inch |
| H1 | 2.437 inch |
| Threads | M20X2.5 Metric |
| A | 1.319 inch |
| A1 | 0.875 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 2/0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
