SKU: SBFW204

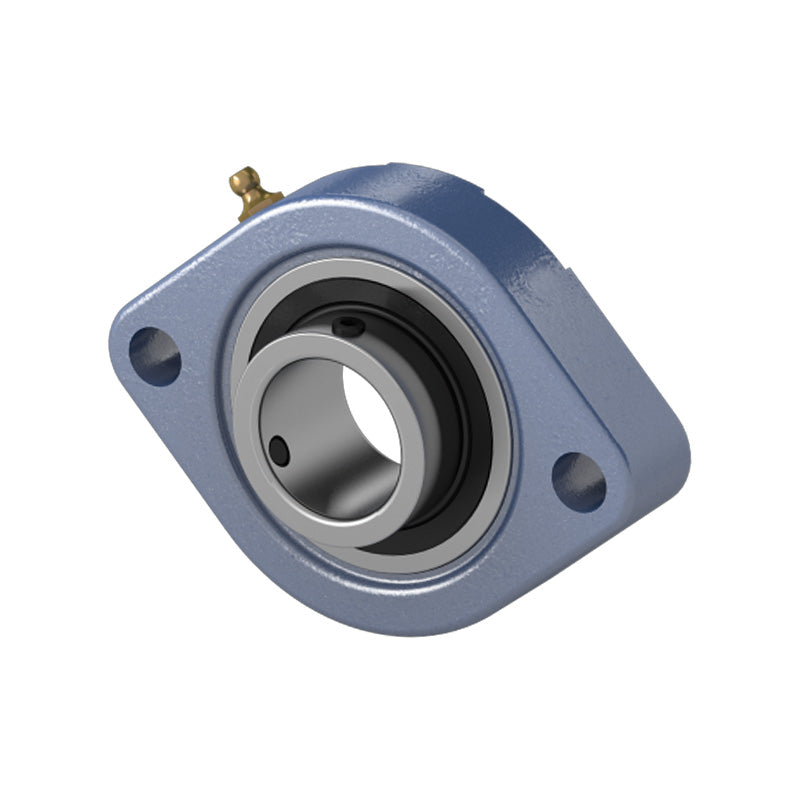

SBFW204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
SBFW204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
Regular price
€10,88
ex VAT
Regular price
Sale price
€10,88
ex VAT
In stock
Price Break
3+
€8,29
4+
€7,82
9+
€7,73
19+
€7,63
49+
€7,54
99+
€7,45
499+
€6,98
999+
€6,89
1999+
€6,80
2999+
€6,70
4999+
€6,52
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SBFW
- Bolt Hole Centres:
- 71.4mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 90.5mm |
| e | 71.4mm |
| b | 66.5mm |
| i | 9.5mm |
| s | 9mm |
| l | 17mm |
| Bolt | M8 |
| z | 27.5mm |
| B | 25mm |
| n | 7mm |
| Weight | 0.4 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
