SKU: SBFD204

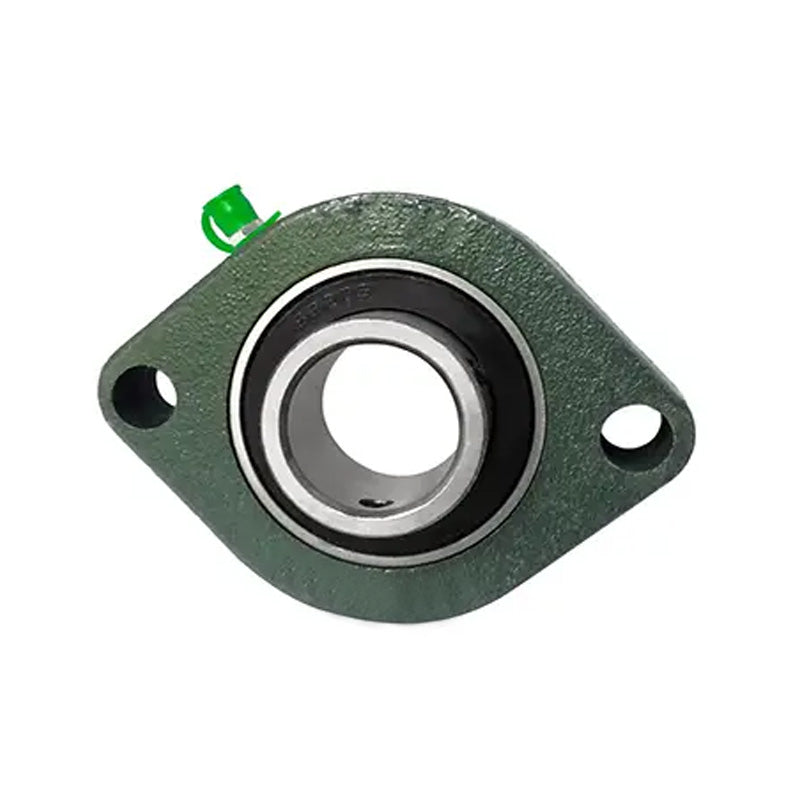

SBFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
SBFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore
Regular price
€9,63
ex VAT
Regular price
Sale price
€9,63
ex VAT
In stock
Price Break
10+
€8,57
19+
€8,09
29+
€7,99
39+
€7,90
49+
€7,80
74+
€7,70
99+
€7,22
199+
€7,13
249+
€7,03
499+
€6,93
999+
€6,74
Couldn't load pickup availability
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SBFD
- Bolt Hole Centres:
- 71mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 90mm |
| e | 71mm |
| b | 67mm |
| i | 9.5mm |
| s | 10mm |
| l | 17mm |
| z | 27.5mm |
| B1 | 25mm |
| n | 7mm |
| Bolt size | M8 |
| Bearing no | SB204 |
| Housing no | FD204 |
| Weight | 0.4 kg |
